Description
Basic information

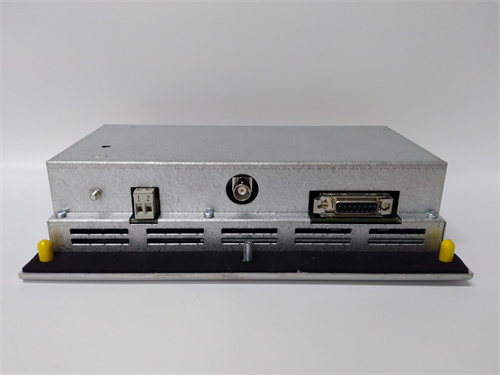

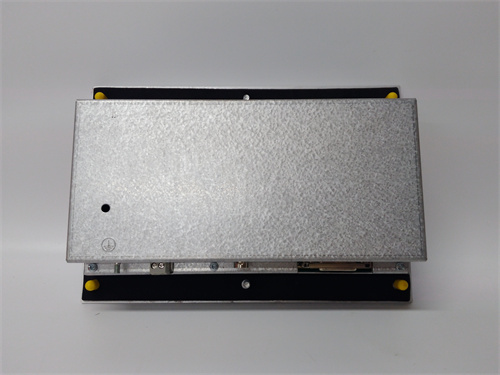

Name : PXAH401
Manufacturer : ABB
function
As a switching element, it controls and regulates electrical energy.
Main features
High voltage : Withstand DC voltage up to 120.00V, some references refer to 600V to 1200V.
High current : Withstand currents up to 40.00A, some references refer to a range of 20A to 40A.
low frequency : Suitable for low frequency applications with fast switching response.
Efficient : Efficient thermal design and low loss.
reliability : The use of high-quality materials and advanced technology to ensure high reliability and stability.
Dimensions and weight
dimensions : The housing measures 3.3 x 3.3 x 0.75 inches (83.82 x 83.82 x 19.05mm).
Weight : 9g (excluding radiator).
Other parameters
Switching frequency range: 10kHz to 20kHz.
It consists of an IGCT (integrated gate commutated thyristor) and a diode.
Uses
Used in power electronics such as motor controllers, power supplies, inverters and DC/DC converters.
