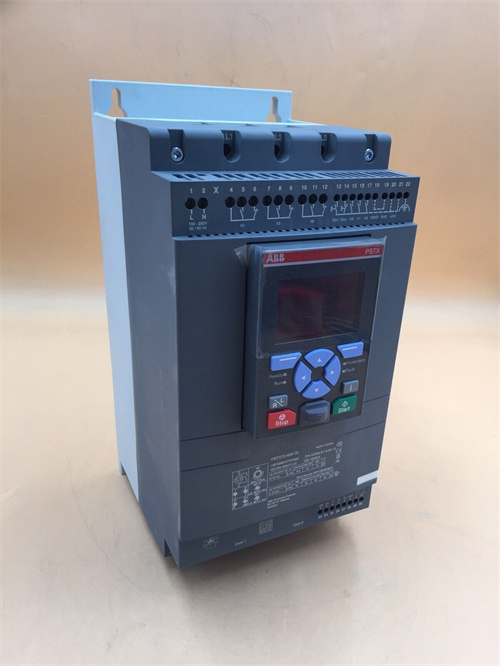

PSTX570-600-70

Description

Parameters and Specifications:

Rated Work Voltage: Main circuit 208-600 V AC.
Rated Control Power Supply Voltage: 100-250 V.
Rated Control Circuit Voltage: DC operation 24 V.
Rated Frequency: Main circuit 50/60 Hz.
Rated Work Power (Straight Connection): (400 V) 250 kW.
Rated Work Current (Straight Connection): 470 A.
Rated Work Power (Internal Delta Connection): 400 V 450 kW.
Rated Work Current (Internal Delta Connection): 814 A.
Integrated Electronic Overload: Yes.
Adjustable Rated Motor Current (Ie): 30% to 100%.
Initial Voltage at Startup: 10% to 99%.
Bypass Signal Relay: Yes.

Dimensions and Weight:

Dimensions: 361 mm x 493 mm x 282 mm.
Weight: 25 kg.

Features:

Motor Reliability: Ensures the reliability of the motor by protecting it from electrical stress, thereby extending its lifespan.
Easy Installation and Learning: Its user-friendly design simplifies the installation and learning process, reducing assembly and startup time.
Integrated Functions: Integrates various functions required for motor control, such as bypass contactors and overload protection, into a single unit.
