Description
Parameters and Specifications:
- Power: 24VDC nominal (9-30VDC)1
- Power Consumption: Maximum 2.5W1
- Operating Temperature: -40℃ to +70℃ (-40°F to +158°F)1
- Storage Temperature: -40°C to +85°C (-40°F to +185°F)1
- Relative Humidity: 5% to 95% (non-condensing)1
- PROFIBUS DP-V1 Capability: Master/Slave functionality, 1 or 2 PROFIBUS DP-V1 interfaces, data rates up to 12mbps, supports up to 125 PROFIBUS DP-V1 slaves1
- Certifications: CE and UL/cUL1
Series: Not specifically mentioned in the given search results, but it is a PROSOFT product.
Features:
- Communication Capability: Provides a connection between Rockwell Automation® PACSystems RX3i controllers and PROFIBUS DP-V1 networks1.
- Fast Data Updates: High-speed data transfer on the backplane provides rapid data update times2.
- Modular Design: Allows for easy expansion and maintenance3.
- Versatile Compatibility: Compatible with various Quantum programming tools such as UnityPro XL, Concept, and ProWORX24.
- Diagnostics and Indicators: Supports extended diagnostic data, alarm indications, and confirmation processing2.
Role and Function:

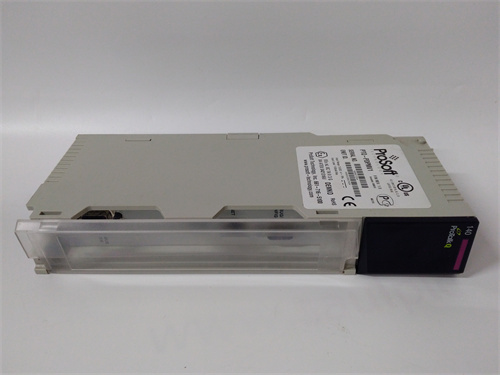

PROSOFT PTQ-PDPMV1 is a PROFIBUS DP master network interface module designed for Quantum® processors. It serves as a powerful communication interface, enabling data exchange between the processor and PROFIBUS DP-V1 networks. It supports the full master station specification according to IEC 61158 standards (PROFIBUS comDTM) and can be configured via Ethernet2.
Size and Weight:
Unfortunately, the exact dimensions and weight of the PROSOFT PTQ-PDPMV1 are not provided in the search results. However, it is typically mounted on a DIN rail and is designed for industrial applications14.
