Description

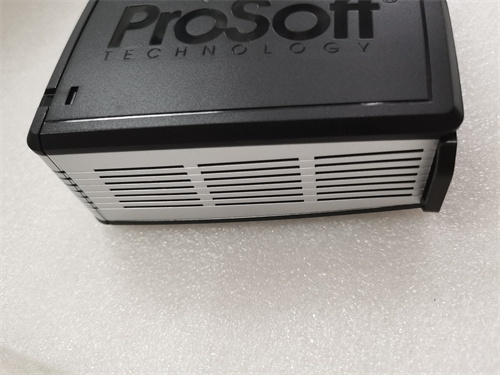

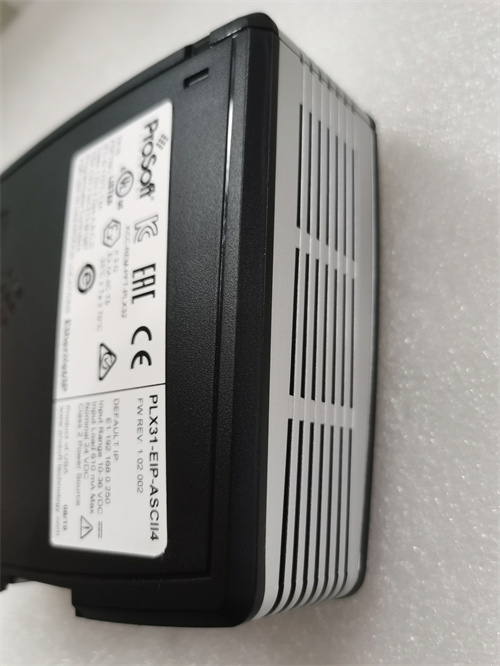

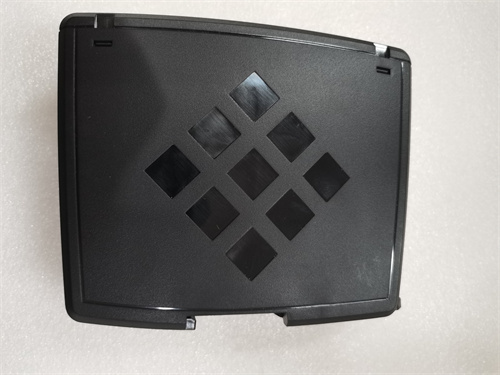

The PROSOFT PLX31-EIP-ASCII4 is a communication gateway module designed for industrial automation applications. It provides a bridge between EtherNet/IP-enabled devices and ASCII-based devices, enabling high-speed bidirectional data transmission. Here are its key parameters, specifications, dimensions, weight, series, features, and functions described in English:
Parameters and Specifications:
Voltage: Typically operates at 24V DC.
Current: The range of operating current is typically between 100-400A.
Serial Ports: Equipped with 4 serial ports.
Isolation: Serial port isolation of 2500Vrms port signal.

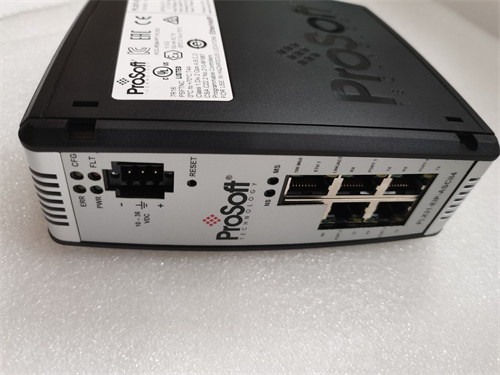

LED Indicators: Include indicators for configuration (CFG) and error (ERR).
Dimensions and Weight:
Dimensions: Approximately 13.67cm x 5.05cm x 11.13cm (length x width x height).
Weight: Typically weighs around 2KG.
Series:
PLX31-EIP-ASCII4 belongs to the PROSOFT communication gateway series, specifically designed for industrial communication and automation solutions.
Features:
Gateway Functionality: It allows for seamless communication between EtherNet/IP-enabled Programmable Automation Controllers (PACs) and ASCII devices like scales and barcode scanners.
User-Configurable: The gateway can be configured as either a client or a server.
Compatibility: Supports a wide range of EtherNet/IP PACs, including Rockwell Automation’s ControlLogix® and CompactLogix™, as well as several Schneider Electric controllers.
Integrated Simplicity: Its features and integration simplicity greatly reduce commissioning time and optimize performance.
Functions and Applications:
Bidirectional Data Transmission: The module facilitates high-speed bidirectional data transmission between EtherNet/IP-enabled devices and ASCII devices.
Industrial Applications: Widely used in various industries, particularly in manufacturing, oil & gas, power, and food processing, where reliable communication between different devices and systems is crucial.
