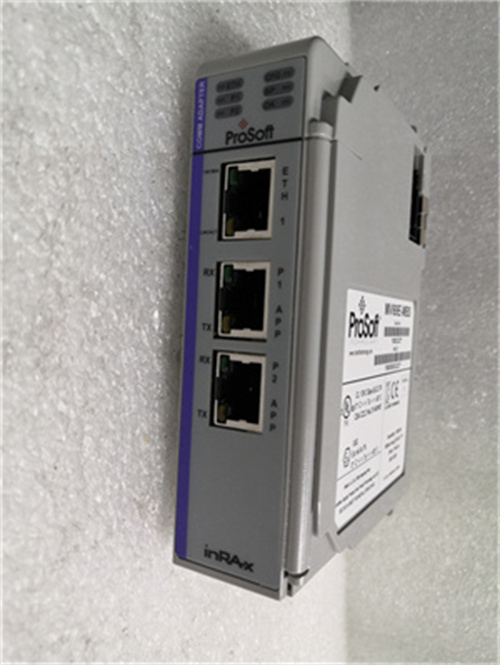

Prosoft MVI69E-MBS

Description

Parameters and Specifications (参数和规格):

• Protocols Supported: Modbus RTU, Modbus ASCII, DF1, ASCII, etc.³⁵
• Communication Parameters: Baud rates from 110 to 115K, data sizes of 7 or 8 bits, stop bits of 1 or 2, parity options of none, even, or odd¹
• Number of Serial Ports: Two¹
• Command Capacity: Supports up to 250 commands per Modbus port¹
• Data Storage: Up to 10,000 words per Modbus port¹
• Modbus Functions Supported: Includes functions such as reading coil status, reading input status, reading/writing holding registers, etc

Features (特征):

• Multi-Protocol Support: Supports various serial communication protocols to meet diverse needs of industrial automation systems²³⁴.
• Enhanced Functionality: Provides data conversion, protocol translation, and communication optimization to enhance communication performance and data transmission efficiency³⁴.
• Flexible Configuration: Allows users to configure various communication parameters, such as baud rate, data size, stop bit, and parity¹⁴.
• User-Defined Tags: User-Defined Tags (UDT) provide logical definitions for I/O, module status, and control data¹.
• Industrial-Grade Design: Ensures reliable and stable operation in harsh industrial environments⁴.
• Easy Integration and Maintenance: Compact design for easy integration into existing systems, with fault diagnosis and status monitoring functions

Role (作用):

• The Prosoft MVI69E-MBS communication module is designed for industrial automation and control system applications²³⁴.
• It integrates Modbus applications into Allen-Bradley ControlLogix series programmable controllers (PLC), enabling communication between ControlLogix PLCs and other Modbus-compatible devices such as sensors, actuators, meters, etc.³.
• Helps facilitate data exchange and communication between different devices, improving the efficiency and reliability of industrial automation systems
