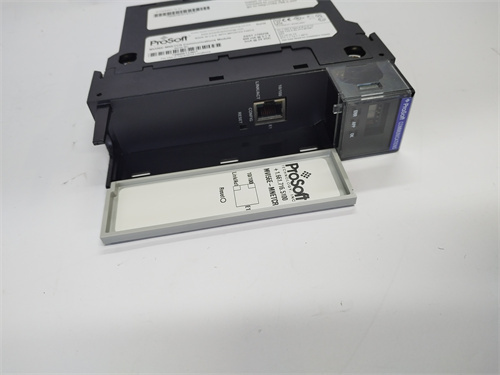

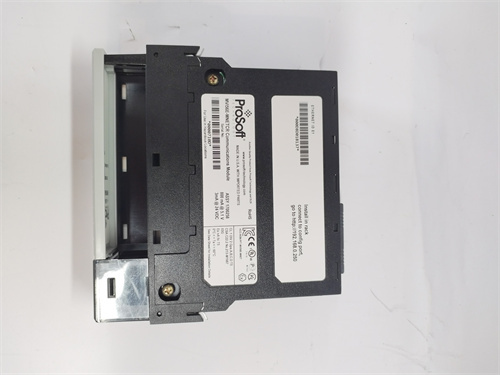

ProSoft MVI56E-MNETC

Description

Parameters and Specifications:

• Technology: Modbus TCP/IP multi-client/server enhanced network interface module¹.
• Compatibility: Specifically designed for compatibility with the ControlLogix platform¹.
• Power Consumption: 5mA at 800 VDC and 24 mA at 3 VDC¹.
• Supported Devices: Up to 30 MODBUS clients and 20 MODBUS servers¹.
• Communication Port: Single Ethernet communication port, supporting 10/100 Mbps transmission rates¹.
• Data Mapping: Supports up to 10,000 words of 16-bit integer for custom data mapping¹.
• Operating Temperature: 0 to 60°C (32 to 140°F) for operation and -25 to 70°C (-13 to 158°F) for storage¹.
• Network Connectivity: Supports up to 502 connections on service port 10 (MBAP) and up to 2000 independent servers on service port 10 (encap

Series:

• Part of the ProSoft MVI56E series of network interface modules.

Features:

• Enhanced Performance: Designed for handling high data volumes and complex communication tasks, meeting the real-time and reliability requirements of industrial automation systems².
• Multi-Client/Server Capability: Allows configuration of multiple Modbus TCP/IP clients and/or servers on a single module, simplifying communication with multiple Modbus devices².
• Easy Configuration and Management: Through simple configuration steps, users can easily set the module as a Modbus client or server and define required communication parameters².
• Wide Compatibility: Compatible with various Modbus devices, including sensors, actuators, PLCs, and other automation components².
• Disaster Recovery and Quick Replacement: Supports the use of industrial-grade CompactFlash cards for disaster recovery and quick replacement

Applications:

• Used to connect and communicate with various Modbus TCP/IP devices in industrial automation systems, such as remote monitoring systems, energy management systems, building automation systems, etc.². Enables data collection, control, monitoring, and analysis, improving the efficiency and reliability of industrial automation systems²
