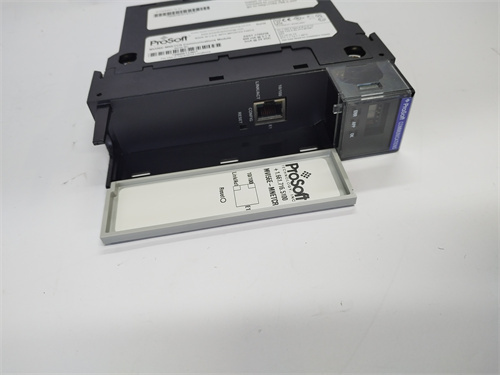

ProSoft MVI56E-MNETC

Description

Parameters and Specifications

• Type: Modbus TCP/IP Multi-Client/Server Enhanced Network Interface Module
• Compatibility: Specifically designed for Rockwell Automation’s ControlLogix platform¹²
• Power Consumption: 800mA at 5VDC, 3mA at 24VDC¹
• Supported MODBUS Connections: Up to 30 clients and 20 servers¹
• Communication Port: Ethernet, supporting 10/100 Mbps transmission rates¹
• Data Mapping: 10,000 words, 16-bit integers, supports custom data mapping¹
• Software Requirement: ProSoft Configuration Builder (PCB) for configuration¹

Dimensions and Weight

• Dimensions: Not explicitly stated, but typical for industrial modules¹³
• Weight: Not specified¹³

Series

• Part of ProSoft Technology’s line of network interface modules¹

Features

• Multi-Client/Server Functionality: Allows configuration of multiple Modbus TCP/IP clients and/or servers on a single module²⁶
• Enhanced Performance: Designed to handle high data volumes and complex communication tasks²
• Ease of Configuration and Management: Simple configuration steps allow users to set the module as a Modbus client or server and define communication parameters²
• Wide Compatibility: Compatible with a variety of Modbus devices, including sensors, actuators, PLCs, and other automation components²
• Disaster Recovery and Quick Replacement: Supports industrial-grade CompactFlash cards for disaster recovery and rapid module replacement¹

Applications and Role

• Automation Systems Integration: Used to connect and communicate with various Modbus TCP/IP devices in industrial automation systems¹²
• Real-Time Data Collection and Monitoring: Enables data collection, control, monitoring, and analysis functions, improving the efficiency and reliability of industrial automation systems²
• Remote Monitoring and Management: Supports remote access via network connections, enabling remote monitoring and management of factory equipment⁴
