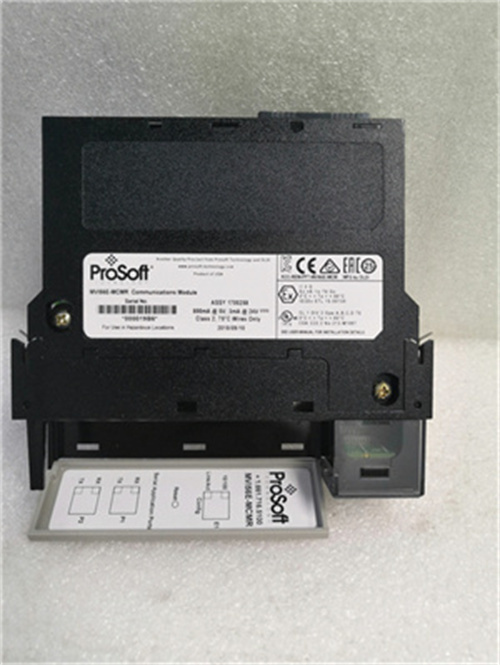

Prosoft MVI56E-MCMR

Description

Parameters and Specifications:

• Communication Protocols: MODBUS Serial/ASCII, Modbus TCP/IP, EtherNet/IP, DF1¹²³.
• Ports:
  • Dual RS232 Serial Ports supporting RS232/RS485 and RS422 electrical standards¹.
  • RJ45 Ethernet Port for debugging/configuration¹.
• Baud Rate: Configurable from 110 baud to 115.2 kbps¹.
• Serial Settings:
  • Parity: None, Odd, or Even¹.
  • Data Bits: 5, 6, 7, or 8¹.
  • Stop Bits: 1 or 2¹.

Dimensions and Weight:

• The exact dimensions and weight for the MVI56E-MCMR module are not provided in the search results. However, it is described as a single-slot module that can be installed in a 1756 chassis¹.

Series:

• The MVI56E-MCMR belongs to the PROSOFT line of communication modules¹.

Features:

• MODBUS Support: Enables seamless integration with existing industrial automation systems¹³⁶.
• Flexible Connectivity: Dual RS232 ports with adjustable baud rates and serial settings¹⁴.
• Ethernet Port: Provides convenient debugging and configuration¹⁴.
• Wide Voltage Range: Supports 10-30V DC².
• Temperature Range: Operating temperature from -40°C to +85°C².

Applications:

• Industrial Automation: Connects controllers (e.g., PLCs, DCS) for data integration, monitoring, and control³⁷.
• Remote Monitoring & Management: Enables remote monitoring of equipment status and performance⁵.
• Energy Management: Connects to energy devices for production, transmission, and distribution monitoring⁵.
• Building Automation: Connects controllers and devices for monitoring and control of lighting, HVAC, and security⁵.
• Transportation: Connects controllers for remote monitoring and control of traffic signals, rail systems⁷.
• Environmental Monitoring: Connects sensors and actuators for monitoring and control of environmental parameters⁵.
