Description

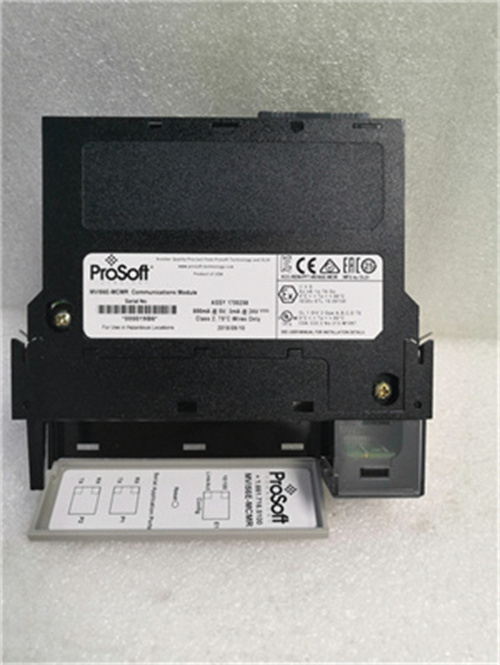

PROSOFT MVI56E-MCMR is a communication module designed for industrial automation systems. Here is a summary of its parameters, specifications, dimensions, weight, series, features, and functions in English:
Parameters and Specifications:
The MVI56E-MCMR supports a range of communication protocols, including Modbus RTU/ASCII, DF1, ASCII, DH485, Modbus TCP/IP, EtherNet/IP, and AB CSP.
It has a power requirement of 5V DC or 10-30V DC, and operates within a temperature range of 0°C to 60°C or -40°C to +85°C.
The module is compatible with various automation systems, including power, oil and gas, chemicals, steel, water conservancy, and transportation sectors.
Dimensions and Weight:
The dimensions of the MVI56E-MCMR are 4.2 x 7.1 x 1.8 inches (or approximately 10.67 x 17.98 x 4.57 cm).
Its weight is approximately 0.5 pounds (or approximately 0.23 kg).
Series:
The MVI56E-MCMR is part of the PROSOFT MVI56 series of communication modules.
Features:
The module supports multiple programmable logic control methods, including Ladder Logic, Function Block Diagram, and Structured Text.
It offers reduced data blocks for simplified scheduling and transmission through the control network.
The MVI56E-MCMR comes with an RJ45 Ethernet port for debugging and configuration purposes, supporting 10/100 base-T transmission speeds.
It features a single-slot design, allowing for direct installation into any 1756 chassis.
Role/Function:
The PROSOFT MVI56E-MCMR acts as a communication bridge between devices using the Modbus RTU/ASCII serial communication protocol and the ControlLogix processor from Rockwell Automation.
It enables seamless integration and communication between various instruments, process measurement devices, programmable logic controllers (PLCs), and programmable automation controllers (PACs).
With its enhanced Modbus master/slave communication capabilities, the MVI56E-MCMR simplifies the interface between the ControlLogix processor and Modbus-compatible devices, improving overall system efficiency and reliability.
Please note that the specifications, dimensions, and weights provided here may be subject to change based on the manufacturer’s updates. It is recommended to consult the official product documentation or contact the manufacturer for the most accurate and up-to-date information.
