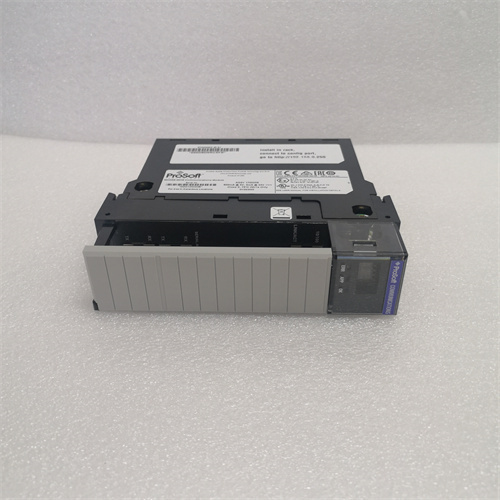

PROSOFT MVI56E-MCM

Description

Parameters and Specifications:

• Brand: PROSOFT
• Model: MVI56E-MCM
• Communication Protocols: Includes Modbus TCP/IP, EtherNet/IP, DF1¹
• Operating Temperature: -40℃ to 85℃²
• Storage Temperature: -40℃ to 85℃¹
• Dimensions: 117mm x 43mm x 129mm (According to some sources, dimensions may vary)¹
• Weight: 0.91kg¹

Series:

• The MVI56E-MCM is a specific model under the PROSOFT’s product line. It does not have a separate series name.

Features:

• Design Purpose: Designed for standard process applications¹²
• High-Temperature Resistance: Can withstand higher operating temperatures and has conformal coating to protect it from harsh or corrosive conditions¹²
• Communication Interfaces: Built-in with four independent Ethernet interfaces and an integrated network switch, two of which are programmable to support different Ethernet-based protocols²
• Computing Power: Equipped with four 32-bit RISC processors and an embedded double-precision floating-point processor, providing high-level computing capabilities for handling complex control tasks¹
• Flexible Configuration: Each MVI56E port can be configured as a master or slave, providing users with great flexibility to adjust port configurations based on actual needs³
• Strong Backplane Functionality: Acts as an input/output module on the ControlLogix backplane, allowing Modbus data to appear as I/O data on the processor¹⁶
• Independent Configurable Serial Ports: Features two independently configurable serial ports supporting RS232/RS485 and RS422 electrical standards³
• Strong Diagnostic and Configuration Capabilities: Equipped with an RJ45 Ethernet port for debugging/configuration, supporting 10/100 base-T transmission speeds³
• Backward Compatibility: All MVI56E products are backward compatible with earlier MVI56 modules, allowing for direct replacement without changing existing controller programs

Functions:

• The PROSOFT MVI56E-MCM serves as a communication module that allows for Modbus master/slave connections from Rockwell Automation ControlLogix processors to Modbus RTU/ASCII devices. It enables the exchange of Modbus data between different devices and systems²
