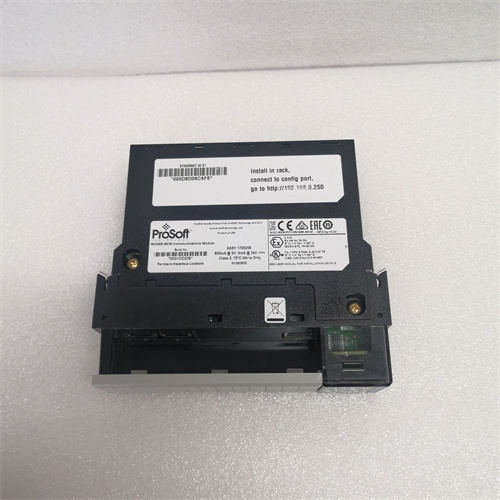

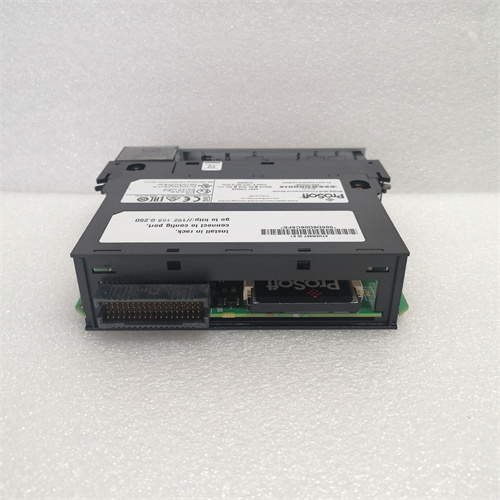

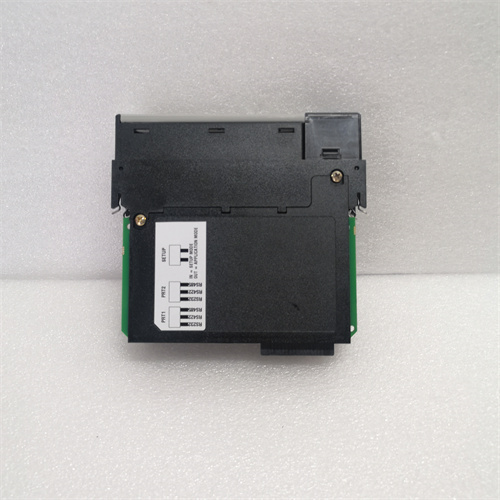

PROSOFT MVI56E-MCM

Description

Parameters and Specifications:

• Communication Protocols: Modbus TCP/IP, EtherNet/IP, DF1¹
• Operating Temperature: -40℃ to 85℃¹
• Storage Temperature: -40℃ to 85℃¹
• Dimensions: 117mm x 43mm x 129mm (As stated in search result 2, but other sources may vary)¹
• Weight: 0.91kg¹

Series:

• MVI56E Series

Features:

• Design Purpose: Designed for standard process applications¹²
• High Operating Temperature Tolerance: Can withstand higher operating temperatures with conformal coating for protection against harsh or corrosive conditions¹²
• Communication Interface: Equipped with four independent Ethernet interfaces and an integrated network switch, with two interfaces programmable to support different Ethernet-based protocols¹
• Computing Power: Equipped with four 32-bit RISC processors and an embedded double-precision floating-point processor, providing high-level computing power to handle complex control tasks¹
• Small Size with High Power Density: Compact size yet high power density to meet the needs of high-power applications³
• Wide Voltage Input Range: Input voltage range up to DC 110V, suitable for various application scenarios³

Applications:

• PROSOFT MVI56E-MCM is a Modbus master/slave enhanced network interface module that allows Modbus RTU/ASCII device connectivity from Rockwell Automation ControlLogix processors. It functions as an input/output module on the ControlLogix backplane, making Modbus data appear as I/O data in the processor².
• It is used in automation control systems, particularly in industrial environments where robust communication and reliable data exchange are critical
