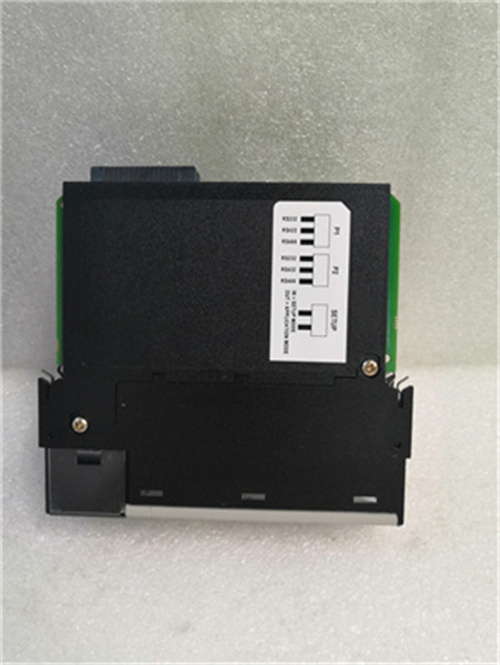

PROSOFT MVI56E-MCM

Description

Parameters and Specifications

• Communication Protocols: Supports Modbus TCP/IP, EtherNet/IP, DF1¹
• Operating Temperature: -40°C to 85°C¹
• Storage Temperature: -40°C to 85°C¹
• Processor: Equipped with four 32-bit RISC processors and an embedded double-precision floating-point processor¹

Dimensions and Weight

• Dimensions: 117mm x 43mm x 129mm¹²
• Weight: 0.91kg¹²

Series

• Part of PROSOFT’s MVI56E series of communication modules¹

Features

• Design Purpose: Designed for standard process applications¹
• High Temperature Resistance: Able to withstand high operating temperatures with conformal coating for protection against harsh or corrosive conditions¹
• Communication Interfaces: Built-in with four independent Ethernet interfaces and an integrated network switch, two of which are programmable to support different Ethernet-based protocols¹
• High Computing Power: Capable of handling extremely complex control tasks¹
• Multi-Motor Control: Supports DC brushed motors, DC brushless motors, permanent magnet synchronous motors, asynchronous motors, and other motor types³
• Wide Voltage Range: Input voltage range up to DC 110V³
• High Output Current: Maximum rated output current up to 20A³
• Advanced Functions: Includes force control, precision compensation, nonlinear compensation, and other advanced functions³

Applications and Role

• Industrial Automation: Used in industrial automation systems to facilitate data exchange and communication between different devices, controllers, PLCs, HMI, and other automation equipment³⁴
• Data Collection and Monitoring: Connects sensors, instruments, and other devices to collect field data and transmit it to central control systems or monitoring platforms for processing and display³
• Remote Control: Suitable for remote control systems, enabling remote access, monitoring, and control of remote devices or sites³
• System Integration: Integrates data and communication between different brands and types of equipment in industrial environments⁴
