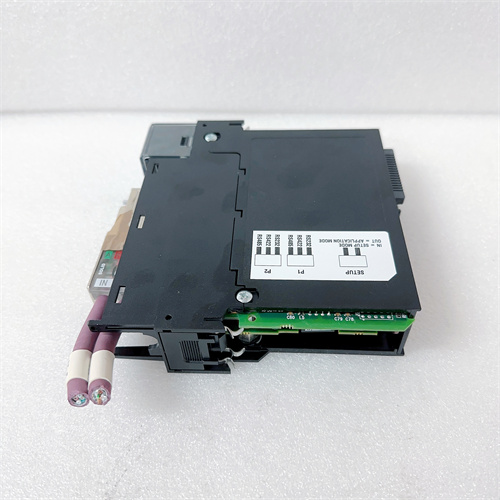

PROSOFT MVI56-PDPMV1

Description

Parameters and Specifications:

• Type: PROFIBUS DP V1 Master Communication Module
• Interface: RS485 Optically Isolated PROFIBUS Interface
• Protocol Support: PROFIBUS DP V1
• Max. Connected Devices: Up to 125 Slave Devices
• Memory: On-board Memory for Configuration and Data Processing
• Compliance: Meets IEC 61158 for PROFIBUS Master Specification
• Communication Rate: Supports all Standardized Baud Rates, Up to 12 Mbps
• Diagnostics: Supports Extended Diagnostics Data (DPV1)
• LED Indicators: Operation, Network Communication, Master Status

Features:

• High Stability and Reliability: Performs well in various industrial environments¹².
• Multiple Communication Protocols: Supports multiple communication protocols such as PROFIBUS DP-V1¹²³⁴.
• High-Performance Processing: Equipped with high-performance processors and memory for fast data calculation and processing¹².
• Flexible Configuration: Configurable I/O backplane sizes provide performance for remote rack applications¹³.
• LED Status Indicators: Provides status indications for operation, network communication, and master status²³.
• Extensive Diagnostics: Supports extended diagnostic data (DPV1) for enhanced troubleshooting²⁵.
• Compliant: Supports IEC 61158 for PROFIBUS master specification¹².
• Safety Certifications: UL 62368-1, EN 62368-1, IEC 62368-1².
• Operating Temperature Range: From -40°C to 85°C².

Role and Function:

PROSOFT MVI56-PDPMV1 is a communication module designed for industrial automation and control systems. It serves as a PROFIBUS network scanner, transferring input and output data between PROFIBUS devices and processor data¹²³. It enables efficient and reliable data transmission and device monitoring in industrial automation applications². It is typically used for PLC communication, network connection, data acquisition and monitoring, remote access, and protocol conversion⁵.
