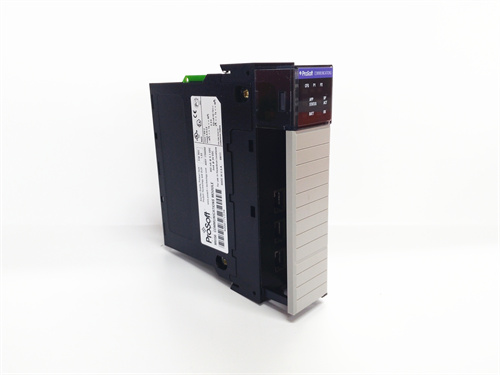

PROSOFT MVI56-MCM

Description

Parameters and Specifications:

• Supported Platform: Allen-Bradley ControlLogix PLC
• Supported Protocols: Modbus RTU and ASCII
• Maximum Communication Rate: Up to 1.5 Mbps
• Power Supply Voltage: 5V DC
• Number of Connected Devices: Up to 31 Modbus slave devices
• Operating Temperature: -40°C to 85°C
• Protection Level: IP20

Series:

• Part of the PROSOFT Modbus communication module series for industrial automation.

Features:

• Efficient Communication: Supports Modbus RTU and ASCII protocols with a maximum communication rate of 1.5 Mbps, enabling fast and reliable data transfer.
• Flexible Configuration: Supports various connection modes and register mappings, simplifying communication configuration between controllers and slave devices.
• Large Capacity: Able to connect up to 31 Modbus slave devices, meeting the needs of large-capacity data acquisition and control.
• High Reliability: Utilizes industrial-grade components and manufacturing processes, providing good anti-interference capability and stability for long-term stable operation in harsh industrial environments.
• Ease of Use: Simple installation and configuration process, enabling quick deployment and utilization.
• Wide Applications: Can be used in various industrial automation and control systems, including water treatment, manufacturing, oil pipelines, food and beverage industries, etc.

Applications:

• The PROSOFT MVI56-MCM module serves as a gateway between Allen-Bradley ControlLogix PLCs and Modbus devices, enabling data communication and control functionality. It is used to connect Modbus slave devices to the ControlLogix system, allowing for the exchange of data between the PLC and the Modbus network. This enables integration of Modbus-compatible devices into ControlLogix-based automation systems.
