PROSOFT AN-X2-AB-DHRIO

Product Description

Product Parameters

• Power Supply: External 24 VDC power is required4. The rated current consumption is 200 mA at 12 VDC or 100 mA at 24 VDC, and the maximum rated power consumption is 2.4 W4.
• Communication Interfaces: It is equipped with 1 RJ45 10/100 Mbps Ethernet port for Ethernet/IP communication and 2 three – pin Phoenix connectors for power and DH+/RIO network connections4.
• Data Transfer Rate: The Ethernet port supports a data transfer rate of 10/100 Mbps. The communication interface supports configurable data transfer rates of 57.6, 115.2, and 230.4 K baud4.
• Compatibility: It is compatible with Allen – Bradley’s ControlLogix, CompactLogix controllers, and devices that support Remote I/O (RIO) or Data Highway Plus (DH+) communication protocols, such as PLCs, SLC 500s, PanelViews, drives, and Flex I/O adapter modules4.
• Operating Temperature: The operating temperature range is 0 – 50°C4.

Advantages and Features

• High Reliability: PROSOFT is a well – known company in the field of industrial automation, and its products have gone through strict quality testing. The AN – X2 – AB – DHRIO is equipped with an automatic configuration utility that can detect the baud rate and map discrete I/O to reduce configuration errors, ensuring reliable communication4. In addition, it has a built – in Web server that allows remote monitoring and configuration, which can promptly discover and solve problems, improving the reliability of the entire system4.

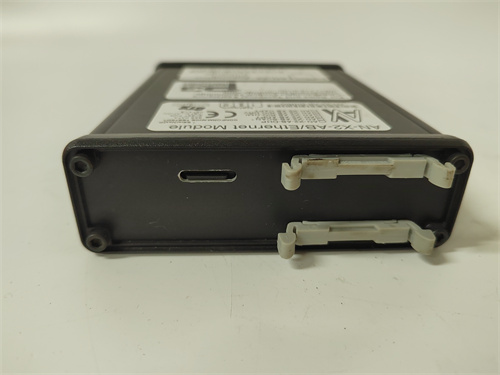

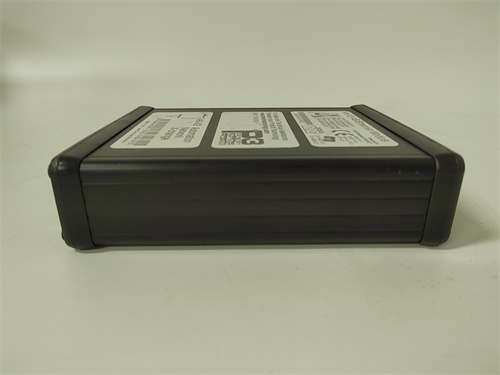

• Easy Integration: This module is a small and compact device that supports desktop or DIN – rail mounting, which is very convenient for installation4. It can be easily integrated into modern control systems of traditional equipment, enabling the continued use of existing devices without the need for complete replacement, providing customers with a flexible and practical alternative solution4. For example, in the process of upgrading the Remote – I/O network to a new ControlLogix or CompactLogix system, it allows engineers to create a new control system, simulate and debug it online in real – time without shutting down the original system, and confirm whether it has the same function as the original system, thus reducing downtime3.
• Strong Compatibility: It supports multiple communication protocols, including DH+ and RIO network protocols, which can meet the communication needs of different devices in complex industrial automation environments4.

Application Areas and Cases

• Application Areas: The AN – X2 – AB – DHRIO is commonly used in manufacturing plants, process automation systems, and other industrial environments where seamless and reliable communication between different devices is required4. Such as the automotive manufacturing industry, the production lines of electronic product manufacturing plants, and the process control systems of chemical plants.
• Application Case: A manufacturer in India needed a new method to monitor the manufacturing process of its communication cables. The company wanted to create a data visualization, analysis, and reporting portal, but it needed to collect process data from 16 PLC – 5® controllers distributed in 3 areas and transmit it to a ControlLogix® PLC. The ControlLogix controller used the Ethernet/IP™ protocol, which hindered communication with the traditional PLC – 5 system using DH+™. By using three PROSOFT AN – X2 – AB – DHRIO migration gateways, each DH+ network was connected to the Ethernet/IP network. This setup helped the company reduce waste, improve quality, make proactive decisions, and reduce manual activities. Through the information transmitted to the ControlLogix via the gateway, the customer was able to identify and eliminate inefficiencies and redundancies in the production process, optimize resources, and improve the entire production process.

Comparison with Similar Products

Selection Advice

• Compatibility: Ensure that the equipment to be connected, such as controllers and peripheral devices, is compatible with the AN – X2 – AB – DHRIO, and confirm that they support the corresponding communication protocols.
• Installation Environment: Consider the installation space and environmental conditions. The module’s operating temperature is 0 – 50°C, so make sure the installation environment meets this requirement. If it is installed in a harsh environment, appropriate protection measures need to be taken.
• Budget: The price of the AN – X2 – AB – DHRIO should be within the project budget. At the same time, consider the overall cost of the system, including installation, debugging, and maintenance costs.

Precautions

• Installation: When installing, follow the installation instructions carefully to ensure correct connection of power and communication lines. The module should be firmly fixed to avoid vibration and loosening.
• Safety: When using in a hazardous location, make sure that the product is marked and suitable for the corresponding hazardous area. The combination of equipment in the system needs to be inspected by the local authority having jurisdiction at the time of installation.
• Maintenance: Regularly check the operating status of the module, including the status of indicator lights and communication connections. Clean the module regularly to prevent dust and dirt from affecting its performance. Backup the configuration file regularly to prevent data loss.
