Description

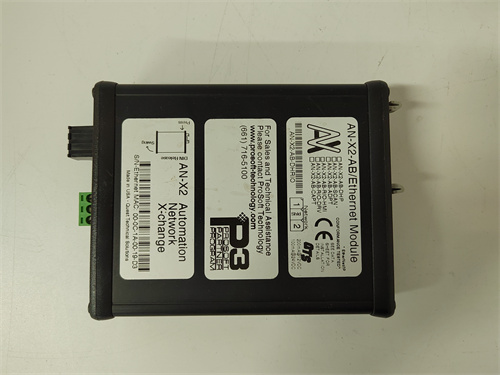

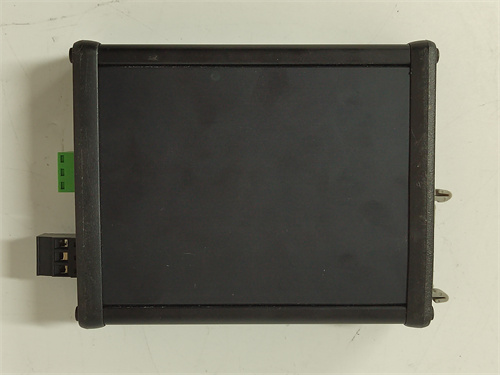

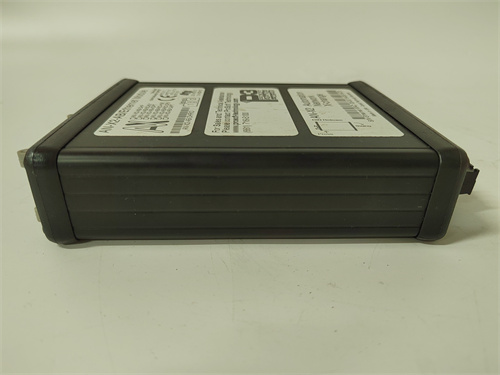

PROSOFT AN-X2-AB-DHRIO is a communication module designed for industrial automation and control systems. Here are its key parameters, specifications, dimensions, weight, series, features, and functions in English:
Parameters and Specifications:
Working Voltage: 24VDC.
Operating Temperature Range: -40°C to +85°C.
Communication Interfaces: Ethernet, DH+.
Supported Protocols: EtherNet/IP, Modbus TCP, DF1, DH485, ASCII, and others.
Maximum Node Count: 64 DH+ nodes.
Data Transmission Rate: Up to 10/100 Mbps.
Dimensions and Weight:
Dimensions: 109.2mm x 25.4mm x 127mm.
Weight: 310g.
Series:
The AN-X2-AB-DHRIO belongs to the PROSOFT line of industrial communication modules.
Features:
Versatile Connectivity: Connects modern Programmable Automation Controllers (PACs) such as Allen-Bradley’s ControlLogix and CompactLogix controllers with devices using traditional Remote I/O (RIO) and Data Highway Enhanced (DH+) communication protocols.

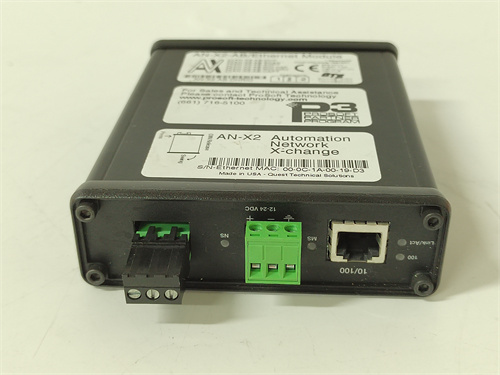

Flexible Communication Interface: Equipped with an Ethernet I/P communication interface and a 2-pin Phoenix network connector for daisy-chain connections to Allen-Bradley PLCs, SLC 500, PanelView, drives, and Flex I/O adapter modules.
High Performance: Supports efficient data transmission rates and multiple baud rate configurations.
Easy Integration and Configuration: Can be easily integrated into existing systems and configured through a CFG port with bright LED indicators for status monitoring.
Web Server Integration: Includes an internal web server for remote monitoring and configuration.
Robust and Reliable: Designed for wide temperature ranges and industrial environments, with strong electromagnetic interference resistance.
Functions/Role:
Communication Bridge: The AN-X2-AB-DHRIO acts as a bridge between modern control systems and legacy devices, enabling seamless communication and data exchange.
System Integration: It allows for the integration of traditional devices into modern control systems, providing a cost-effective solution for system upgrades and migrations.
Flexible Deployment: Its compact size and DIN rail mountability make it suitable for deployment in various industrial environments.
