Description
Parameters and Specifications:
- Power Supply: 24 VDC rated, 18 to 32 VDC allowable1
- Current Load: Maximum 500 mA @ maximum 32 VDC1
- Operating Temperature: -4°F to 122°F (-20°C to 50°C)1
- Storage Temperature: -40°F to 185°F (-40°C to 85°C)1
- Relative Humidity: 5% to 95% (non-condensing)1
Dimensions:
- Standard: 5.20 inches high x 2.07 inches wide x 4.52 inches deep (13.2 cm x 5.25 cm x 11.48 cm)1
- Extended: 5.20 inches high x 2.73 inches wide x 4.52 inches deep (13.2 cm x 6.934 cm x 11.48 cm)
Series:

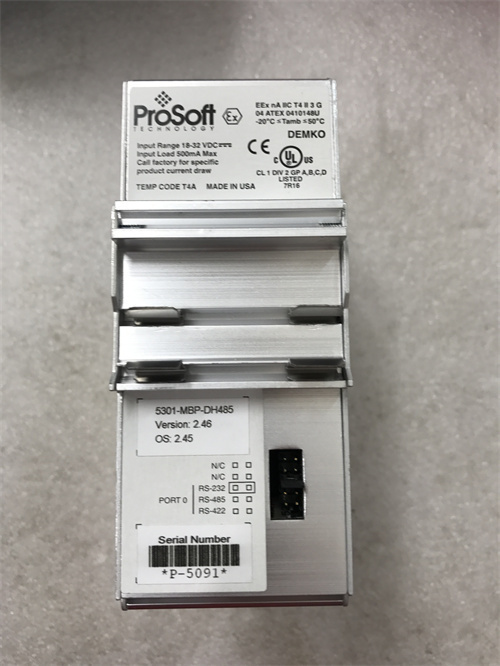

- PROSOFT 5301 Series or PROSOFT Modbus Plus Gateway Series12345
Features:
- Configurable Ports: One Modbus Plus configurable DB-9F port and up to four configurable serial ports1
- Ethernet Connectivity (for Ethernet models): 10Base-T half-duplex RJ45 connector with link and activity LED indicators1
- Electrical Isolation: 1500 V RMS, 50 Hz to 60 Hz, for 60 seconds for Ethernet ports1
- Modbus Plus Connectivity: Two DB9 female standard Modbus Plus connectors1
- Serial Port Isolation: Minimum 3000 VDC, 2500 V RMS port signal isolation according to UL 15771
- LED Indicators: For power, module status, application status, serial port activity, and serial port error status1
- HMI Data Processing Capability: The gateway has the ability to process HMI data, enabling data transmission and integration in Industrial Internet of Things (IIoT) applications
Applications:
- Used as a gateway for data transmission and integration in industrial applications6
- Provides a solution for data transmission from multiple devices to upstream monitoring or data management systems such as SCADA, ERP, etc.6
- Applicable in DCS system accessories, robot system accessories, and large servo system spare parts
