PROSOFT 5301-MBP-DFCM: Parameters, Specifications, Dimensions, Weight, Series, Features, and Applications (English)
Parameters:
Power Supply: Nominally 24 VDC, with an allowable range of 18 to 32 VDC.
Current Load: Maximum of 500mA at 32 VDC.
Operating Temperature: -4°F to 122°F (-20°C to 50°C).
Storage Temperature: -40°F to 185°F (-40°C to 85°C).
Specifications:
Modbus Plus Connectivity: Serves as a gateway between Modbus Plus devices and DF1 slave devices, enabling powerful connections.
DF1 Connectivity: Supports both master and slave configurations on each DF1 port.
Serial Ports: Up to four configurable serial ports, with DB-9M RS-232 standard.

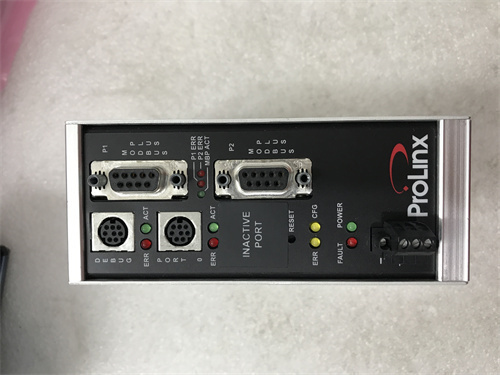

Application Interface: LED indicators for power, module status, application status, serial port activity, and serial port error status.
Dimensions:
Standard Size: 5.20 inches high x 2.07 inches wide x 4.52 inches deep (13.2 cm x 5.25 cm x 11.48 cm).
Expanded Size: 5.20 inches high x 2.73 inches wide x 4.52 inches deep (13.2 cm x 6.934 cm x 11.48 cm).
Weight:
The specific weight of the PROSOFT 5301-MBP-DFCM is not provided in the given search results. Weight may vary depending on the configuration and accessories included.
Series:
The PROSOFT 5301-MBP-DFCM belongs to the PROSOFT line of communication modules and gateways.
Features:
Powerful Integration: It acts as a powerful interface for DF1 devices in industrial markets, especially in manufacturing, oil and gas, power, and food processing industries.
Flexible Configuration: Both Modbus Plus and DF1 ports can be configured as masters or slaves, providing flexibility in connecting various devices.
Robust Connectivity: The module offers robust and reliable connections between Modbus Plus and DF1 devices.
Extensive Support: Compatible with multiple PLCs and automation systems, such as those from Rockwell Automation.
LED Indicators: Visual indicators for easy monitoring and troubleshooting of power, module, application, and serial port statuses.
Applications:
Industrial Automation: Used in various industrial automation systems to enable communication and data exchange between Modbus Plus and DF1 devices.
DCS System Components: Often used as a component in Distributed Control Systems (DCS) for centralized monitoring and control.
Robotics and Large Servo Systems: Can be found in robot systems and large servo systems, serving as a communication link between different components.
