Description

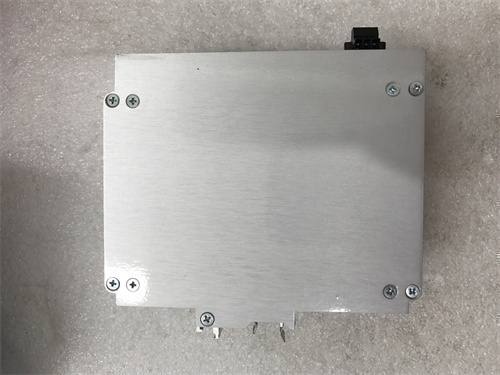

PROSOFT 5301-MBP-DFCM is a communication gateway module designed to establish robust connections between devices on a Modbus Plus network and DF1 slave devices. Here’s a summary of its key parameters, specifications, dimensions, weight, series, features, and functions in English:
Parameters & Specifications:
Power Supply: The module operates on a nominal 24 VDC power supply, with a range of 18 to 32 VDC, allowing for positive, negative, and ground terminal connections.
Current Load: The maximum current load is 500mA at 32 VDC.
Operating Temperature: It operates within a temperature range of -4°F to 122°F (-20°C to 50°C).
Storage Temperature: The storage temperature range is -40°F to 185°F (-40°C to 85°C).
Relative Humidity: The module can operate at 5% to 95% relative humidity, with no condensation.
Dimensions & Weight:
Standard Dimensions: The module’s standard dimensions are 5.20 inches high x 2.07 inches wide x 4.52 inches deep (13.2 cm x 5.25 cm x 11.48 cm).
Expanded Dimensions: The expanded dimensions are 5.20 inches high x 2.73 inches wide x 4.52 inches deep (13.2 cm x 6.934 cm x 11.48 cm).
Series:
PROSOFT 5301-MBP-DFCM belongs to the PROSOFT line of industrial communication modules.
Features:
Modbus Plus to DF1 Connectivity: This gateway establishes a robust connection between Modbus Plus devices and DF1 slave devices, enabling seamless integration and communication.

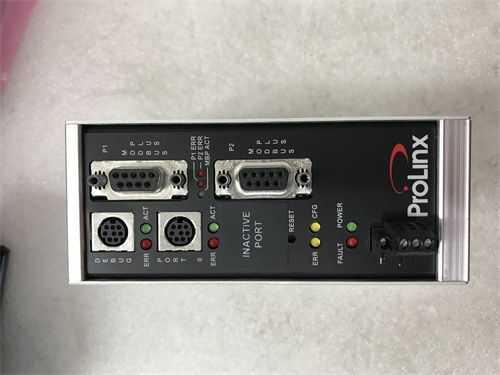

Configurable Ports: It offers a Modbus Plus configurable DB-9F port and up to four configurable serial ports.
Flexible Configuration: Both Modbus Plus and DF1 protocol drivers support host and slave modes on their respective ports, providing flexibility in system configuration.
Wide Industry Applicability: The module is suitable for use in various industries, particularly in manufacturing, oil and gas, power, and food processing.
Robustness & Reliability: Its design includes server support and robust connectivity, making it suitable for reliable integration into Rockwell Automation PLCs and other devices.
Functions & Role:
Communication Interface: PROSOFT 5301-MBP-DFCM serves as a communication interface, bridging the gap between different communication protocols, allowing for seamless data exchange between Modbus Plus and DF1 devices.
Data Integration: It facilitates the integration of DF1 devices into larger systems, enabling centralized monitoring and control.
Industrial Automation: The module plays a crucial role in industrial automation systems, enhancing efficiency, reliability, and overall system performance.
Please note that the specific parameters, specifications, dimensions, weight, and features of the PROSOFT 5301-MBP-DFCM may vary depending on the manufacturing batch, configuration, and any updates made by the manufacturer. It is recommended to consult the official PROSOFT documentation or contact the manufacturer directly for the most accurate and up-to-date information. Additionally, when installing, configuring, or operating this module, it is crucial to follow the relevant safety regulations and operating procedures to ensure the safety of personnel and equipment.
