Description
Specifications and parameters :

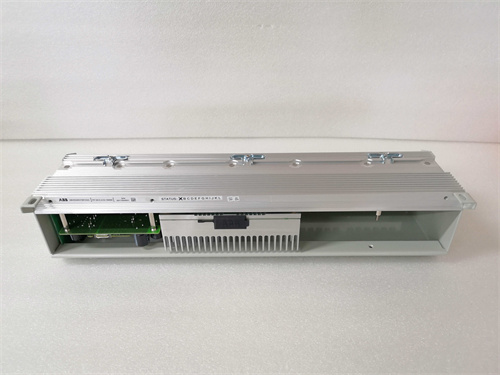

Model : PPD512A10-15000 3BHE040375R1023
brand : ABB
System overview : static excitation system, through the thyristor rectifier bridge to control the excitation current, to achieve the purpose of adjusting the synchronous generator terminal voltage and reactive power 1.
control algorithm : The advanced PID control algorithm is adopted to achieve accurate excitation control2.
Application scope : suitable for various types of industrial motors and generators, such as AC motor, DC motor, synchronous motor, asynchronous motor, etc. 2.
power supply : Supports 1U250W industrial power supply (supports PFC, P4 motherboard), also supports DC/AC inverter power 3.
Weight :
Weight : About 8.0kg (17.6ibs) 3.
function :
Improve generator performance : Provide independent excitation to control the voltage and current of the generator to ensure the stable operation of the power system4.
improve the stability of the power system : used to improve the efficiency and stability of power transmission in the power system 4.
industrial application : Improve the performance of the motor, improve the efficiency of industrial equipment 4.
Size :
Chassis dimensions : 15.75 “x 11.50” x 8.25 “(400 x 292 x 210mm) 3.
Note: The dimensions provided here may refer specifically to the case dimensions, and the dimensions of other components, such as the display, may vary.
Other important information :
working environment : Working temperature 0℃~50℃, relative humidity 20~90% (no frost) 3.
Shock resistance and shock resistance : shock resistance 1.25g@10~100Hz, shock resistance 15g(11ms)3.
Screen and resolution : Support 12.1 “-15.1” TFT high brightness industrial liquid crystal display, resolution including 800×600; 1024 x 768; 1400 x 1050; 1600 x 1200
