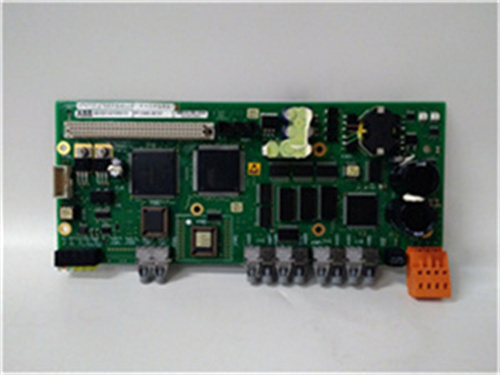

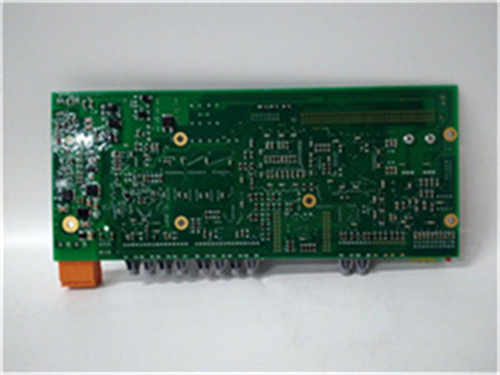

PPC905AE101

Description

The parameters of ABB PPC905AE101 are as follows:

Bus consumption current: 80mA
Total power consumption: 3W
Number of input points: 10
Rated voltage: 24V DC
Continuous allowable voltage: 30V DC
Surge voltage: 35V DC, 0.5s
Logic “0” voltage range: 5V DC, 1mA
Logic “1” voltage range: 15V DC, 1mA
Input delay: 4.5ms
Signal input type: PNP/NPN
Photoelectric isolation (field to logic) : 500V AC, 1 minute
Allowable leakage current: 1mA
Cable length (shielded) : 500M
Cable length (unshielded) : 300M

Number of output points: 6
Output type: Relay
Output voltage: 24V DC or 250V AC
Rated voltage: 5-30V DC / 20-250V AC
Allowable range: Rated current 2.0A
Rated current of common end: 10A
PPC905AE101 Current: 5A, 4s@10% duty cycle
Lamp load: 30W DC/200W AC
Contact mechanical life: 10,000,00

ABB PPC905AE101 features the following:

Efficient and stable. The module uses high-quality electronic components and materials, and has been subjected to strict quality control and testing, with high stability and reliability
Multiple protection functions. The module has multiple protection functions, such as overcurrent protection, overvoltage protection, and undervoltage protection, which can effectively avoid the impact of power failure on the system
Easy to configure and maintain. The module supports a variety of configuration and programming methods, which is convenient for users to configure and program, and the design considers the convenience of maintenance, which is convenient for users to carry out daily maintenance and overhaul
