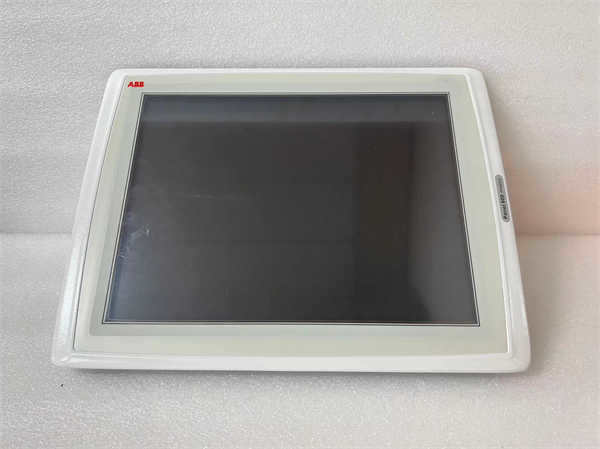

PP865

Description

‌Dimensions and Weight‌:

Dimensions: 398 x 304 x 6 mm (Width x Height x Depth), with an installation depth of 60 mm (160 mm including the front panel seal).
Weight: 3.7 kg.

‌Series‌:

It belongs to the ABB Panel 800 series, specifically the PP865 model.

‌Features‌:

Touchscreen: Polyester on glass, capable of withstanding 1 million finger touches.
Sealing: IP 66 rated front panel seal for protection against dust and water ingress.

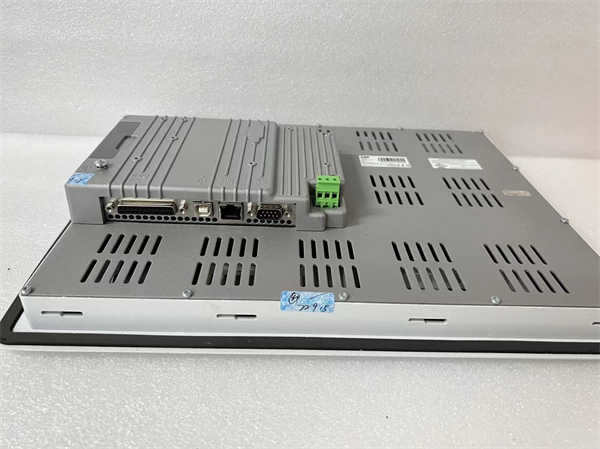

Connectivity: Features serial ports (RS422/RS485 and RS232C) and an Ethernet shielded RJ45 connector.

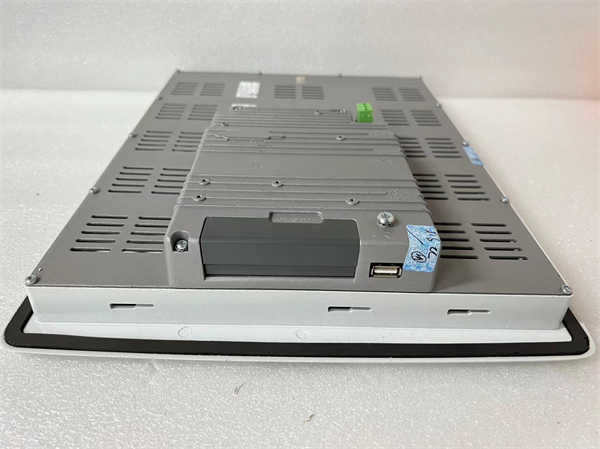

USB Ports: Includes USB host type A (USB 1.1) and device type B (USB 1.1), with a maximum output current of 500 mA.
Real-Time Clock: Present with an error of 20 PPM at 25°C.
Display: 15″ TFT display with a resolution of 1024×768 pixels, suitable for displaying both graphics and text.

‌Functions and Applications‌:

It serves as a Human-Machine Interface (HMI) panel, allowing users to monitor and control automated systems.
Widely used in various industries such as industrial automation, energy management, building automation, transportation systems, medical equipment, and scientific research to enhance user experience and system control efficiency.
Specifically designed for applications requiring high-resolution displays and robust connectivity options.
