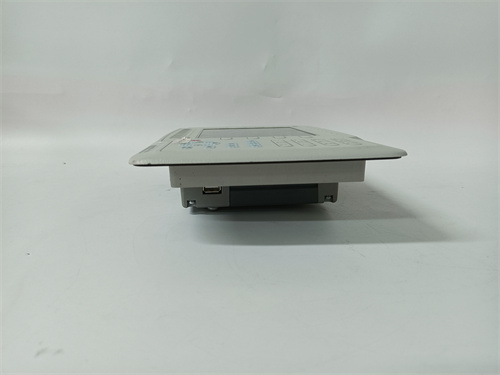

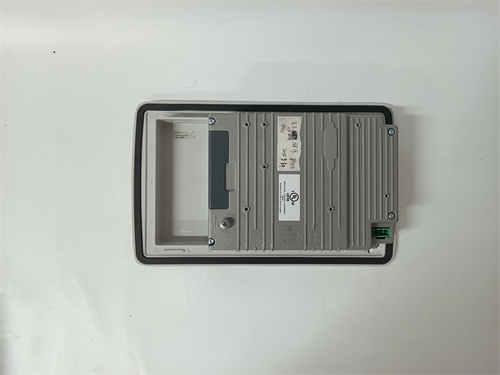

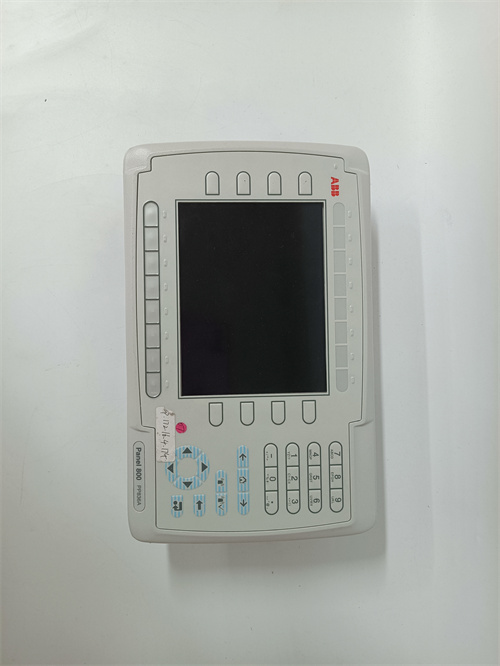

PP836A 3BSE042237R2

¥3,625.00

‌Parameters‌:

Supply Voltage: 12 V DC, 24 V AC/DC, with an allowable range of 10.2 to 28.8 V DC or 20.4 to 26.4 V AC (47 to 63 Hz).
Power Consumption: Typical 65 mA at 12 V DC, typical 40 mA at 24 V DC, typical 90 mA at 24 V AC.
Record Accuracy: ±1%, Control Accuracy: ±0.5%.

‌Specifications‌:

Display: 8-inch TFT color touch screen with 1600 x 1200 pixel resolution.
Maximum Visualization: Up to 50 four-line audio messages, with a maximum of 32 characters per line.
Input Buttons: 6 standard keys and 4 function keys (tactile surface buttons).

‌Dimensions and Weight‌:

Size: 303mm x 154mm x 133mm, Weight: 2.3 kg.

Category:

Description

‌Parameters‌:

Supply Voltage: 12 V DC, 24 V AC/DC, with an allowable range of 10.2 to 28.8 V DC or 20.4 to 26.4 V AC (47 to 63 Hz).
Power Consumption: Typical 65 mA at 12 V DC, typical 40 mA at 24 V DC, typical 90 mA at 24 V AC.
Record Accuracy: ±1%, Control Accuracy: ±0.5%.

‌Specifications‌:

Display: 8-inch TFT color touch screen with 1600 x 1200 pixel resolution.
Maximum Visualization: Up to 50 four-line audio messages, with a maximum of 32 characters per line.
Input Buttons: 6 standard keys and 4 function keys (tactile surface buttons).

‌Dimensions and Weight‌:

Size: 303mm x 154mm x 133mm, Weight: 2.3 kg.

‌Series‌:

It is part of the ABB automation control system components.

‌Features‌:

High reliability and high performance.
Supports multiple languages and multiple input/output options.
Customizable display content, interface design, and communication protocols.
Supports multiple display modes and effects.

‌Functions‌:

Used for PLC and human-machine interaction in automation control systems.
Displays text, graphics, and images, and allows for touch interactions.
Provides data communication and interaction with other devices or systems through various communication interfaces.
