Description
Parameters and specifications
Display screen:
8-inch TFT color touch screen with a resolution of 640×480 pixels.
Support text, graphics, images and other display modes and effects, the maximum visualization function provides 50 four-line audio, each line up to 32 characters.
Input/Output:
Input channels: 16.
Input frequency: 100kHz per channel.
Counting range: 0 ~ 65535, counting accuracy: ±1 count.
Input signal voltage: 24V DC.
6 standard keys, 4 function keys (tactile surface buttons), support a variety of input and output to connect with external devices.
Communication interface:
Supports various communication modes such as serial port, USB port, and Ethernet port.
Power supply mode:
Supply voltage: 12 V DC, 24 V AC/DC (allowable range: 10.2 to 28.8 V DC or 20.4 to 26.4 V AC, 47 to 63 Hz).
Typical power consumption: 65 mA (12 V DC) at 24 V DC, 40 mA (24 V DC), 90 mA (24 V AC).
Working environment:
Operating temperature: -10℃ ~ 60℃ (other information mentioned -30℃ ~ 70℃).
Storage temperature: -40℃ ~ 85℃.
Humidity: 5% ~ 95%, no condensation.
Size and weight
Dimensions: Front panel width x height x depth 285 x 177 x 6 mm, mounting depth 56 mm (156 mm including clearance).
Weight: Approx. 2KG (weight may vary depending on configuration and accessories).
series

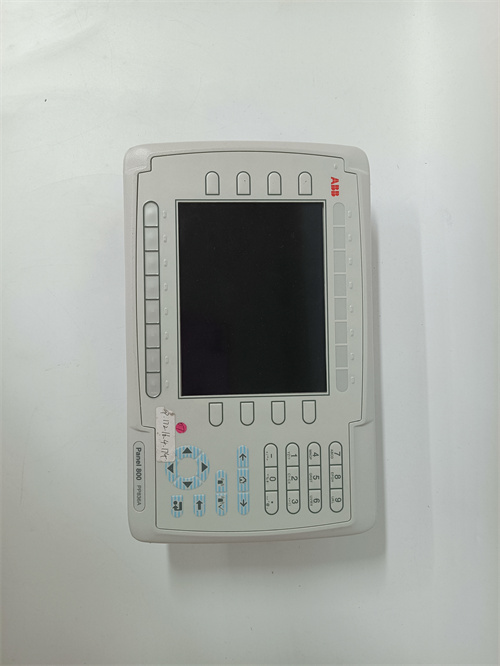

The PP836A is part of ABB’s P800 family of touchscreen operating panel controllers.
trait
Rugged: Designed for demanding industrial environments and able to withstand harsh environmental conditions.
High resolution display: 8-inch TFT color touch screen provides clear and bright display effect.
Multiple communication interfaces: Support serial port, USB interface, Ethernet interface and other communication methods, easy to communicate and interact with other devices or systems.
Flexible input and output: provides a variety of input and output modes to achieve flexible connection and control with external devices.
High protection rating: IP65 (when properly installed on the switchboard) or IP66 (front panel seals).
