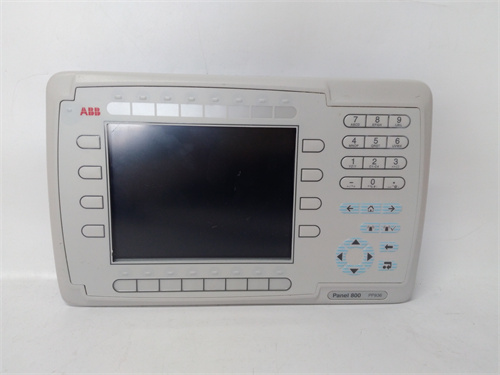

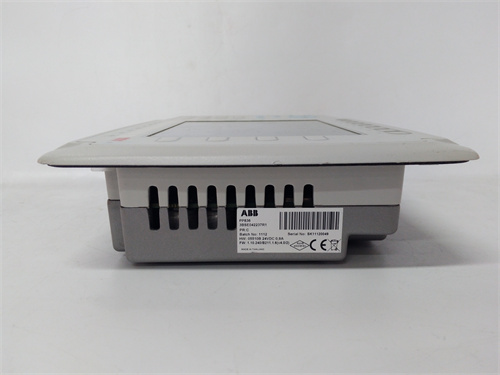

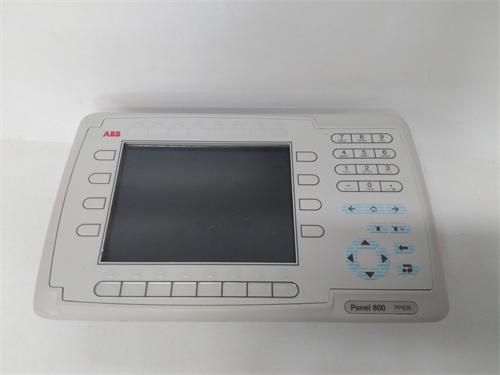

PP836

Description

Series‌:

• Not specified as a distinct series, but could be part of a manufacturer’s line of industrial control panels.
  ‌Parameters & Specifications‌:

*‌Display‌: Features a 10.4-inch high-resolution TFT color display, supporting multiple languages and icons for clear presentation of parameters and data1.
*‌Power Supply‌: Operates on 24V DC23, with a power consumption of 3.5W4.
*‌Operating Temperature‌: Suitable for temperatures ranging from -25°C to +70°C4.
*‌Connectivity‌: Includes serial ports (RS232C, RS422/RS485), Ethernet (RJ45), and USB (Type A, USB 1.1) for communication and data transfer2.
‌Dimensions & Weight‌:

*‌Dimensions‌: The front panel measures approximately 285mm x 177mm x 6mm (width x height x depth), with an installation depth of 56mm (156mm including clearance)

*‌Weight‌: Approximately 1.4kg for the control panel2, but can vary depending on the configuration.
‌Features‌:

*‌High Resolution Display‌: The TFT color display offers excellent visual clarity for process monitoring and control1.
*‌Touchscreen Operation‌: Provides a user-friendly interface for easy navigation and parameter adjustment4.
*‌Multiple Communication Interfaces‌: Supports various communication protocols for seamless integration with other systems and devices2.
*‌Rugged Design‌: Suitable for industrial environments, withstanding a wide range of operating temperatures4.
*‌Versatile Applications‌: Widely used in various industries, including CNC machinery, metallurgy, oil and gas, chemicals, papermaking, textiles, electronics, automotive, and more4.
‌Functions‌:

*‌Process Control‌: Monitors and controls industrial processes, displaying real-time data and parameters1.
*‌Parameter Adjustment‌: Allows users to adjust process parameters and settings through the touchscreen interface4.
*‌Data Communication‌: Facilitates data transfer between the control panel and other systems or devices via serial ports, Ethernet, and USB
