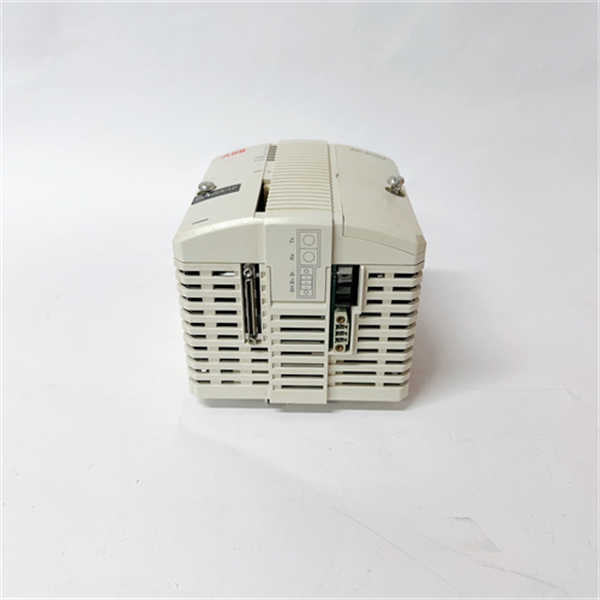

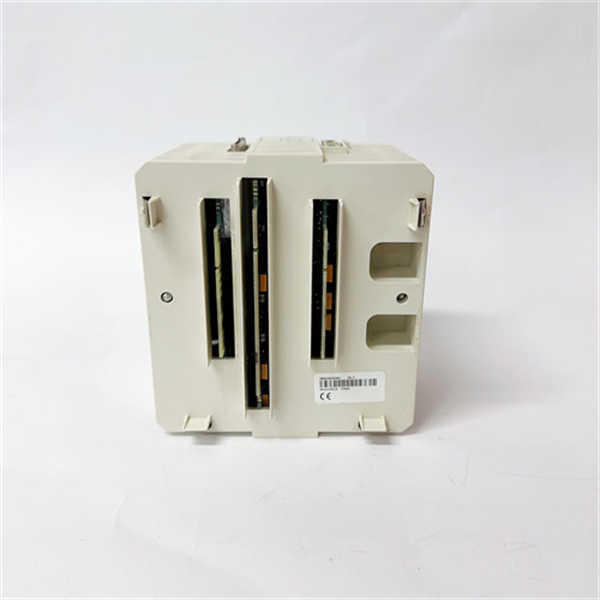

PM862K01

Description

argument
Product Number: 3BSE076940R1
Clock frequency: 67 Mhz
Memory: 32 MB RAM, of which 23.521 MB is available for applications
Processor type: MPC866
Power Supply: 24V DC (19.2-30V DC)
specification
Functions: data acquisition, arithmetic processing, real-time monitoring, control and adjustment
Performance: 1000 Boolean operation 0.18 ms
Scalability: Supports CPU redundancy for higher availability (CPU, CEX bus, communication interface, and S800 I/O)
Size and weight
Size: Approximately 18.6 cm x 11.9 cm x 13.5 cm (H x W x D)
Weight: 1.1 kg (net weight of product), shipping weight is 2 kg
series
ABB AC 800M series (Compact Products 800)
trait
Highly integrated: Includes microprocessor, RAM memory, real-time clock, LED indicator, initialization button and CompactFlash interface
Multi-interface support: The controller baseboard has two RJ45 Ethernet ports (CN1, CN2) and two RJ45 serial ports (COM3, COM4), of which one serial port (COM3) is the RS-232C port with the modem control signal, and the other port (COM4) is isolated for connecting to the configuration tool
Simple installation: A simple DIN rail connection/removal procedure with unique sliding and locking mechanisms
Unique Ethernet address: Each substrate has a unique Ethernet address that provides a hardware identity for each CPU
