Description
argument
Clock frequency: 67 Mhz
Performance: Performing 1000 Boolean operations takes 0.18 ms
Memory: 32 MB RAM, of which 23.521 MB is available for applications
Processor type: MPC866
Power Supply: 24V DC (19.2-30V DC)
Power consumption: Max. 5.1 Watts (Max. 8.6 Watts)
specification
Operating temperature: +5 to +55°C for operation, -40 to +70°C for storage
Humidity: 5% to 95%, non-condensing
Vibration: According to IEC/EN 61131-2 vibration standards
Pollution level: Level 2
Corrosion protection: G3
Electrical safety: In accordance with EN 50178, IEC 61131-2, UL 61010-1, UL 61010-2-201
Size and weight
Size: Approx. 18.6 cm (H) x 11.9 cm (W) x 13.5 cm (D)
Weight: 1.1 kg (net weight of product), shipping weight is 2 kg
trait
High reliability: As part of the AC 800M series, it has the characteristics of high reliability and high integration
Easy installation and maintenance: Designed with a simple DIN rail connection/removal procedure using unique sliding and locking mechanisms
Strong scalability: Supports a variety of expansion and redundancy functions, such as CPU redundancy, CEX bus, communication interface and S800 I/O redundancy
Hardware identity: Each substrate is equipped with a unique Ethernet address that provides a hardware identity for each CPU

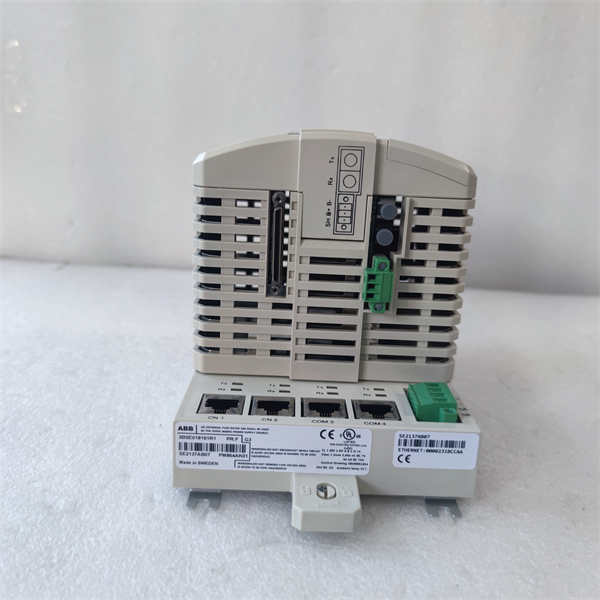

Multiple interfaces: The baseboard of the PM862 controller has two RJ45 Ethernet ports (CN1, CN2) and two RJ45 serial ports (COM3, COM4), of which one serial port (COM3) is an RS-232C port with a modem control signal, and the other port (COM4) is isolated for connecting configuration tools
