1. Product Description

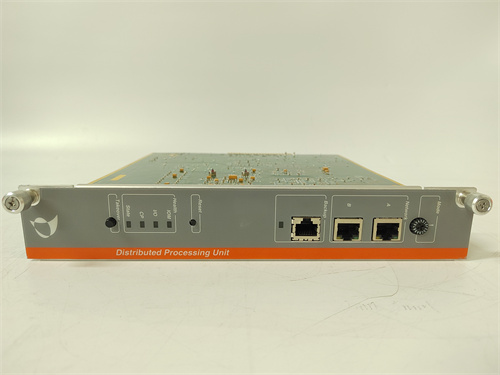

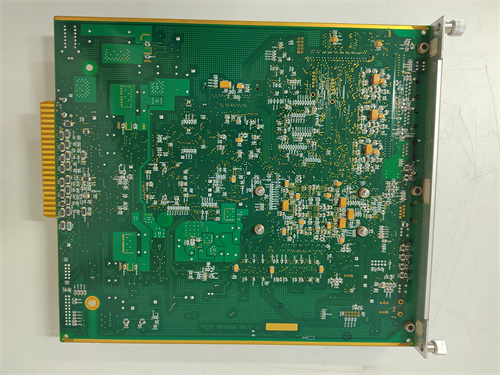

Invensys TRICONEX PDP403 is a significant component within Invensys TRICONEX’s range of safety and control systems. It plays a crucial role in ensuring the reliable and safe operation of industrial processes by providing advanced data processing and communication capabilities.
The PDP403 is mainly used as a redundant power distribution panel. Its core function is to distribute electrical power to various components within the Invensys TRICONEX control system, ensuring a stable and continuous power supply. It also monitors the power status and can detect any abnormal conditions such as power failures or voltage fluctuations. For example, in a petrochemical plant, the Invensys TRICONEX PDP403 can be installed to supply power to the safety PLCs, sensors, and other critical devices. It continuously monitors the power input and output, and in case of any issues, it can send out alarms and take appropriate actions to safeguard the system. In a power generation facility, it can ensure the stable power supply to the control systems that manage the generators, turbines, and other equipment.
The advantages of the Invensys TRICONEX PDP403 include high reliability due to its redundant design, excellent power monitoring capabilities, seamless integration with Invensys TRICONEX systems, and the ability to operate in harsh industrial environments.
2. Product Parameters
| Parameter | Details |
|---|---|
| Operating Voltage | Input: 100 – 240V AC (±10%); Output: 24V DC (±5%) |
| Maximum Current Output | Typically up to 10A per output channel (configurable based on system requirements) |
| Interface Types | Power input interfaces (compatible with standard AC power sources); Power output interfaces for connecting to various devices within the control system; Digital communication interfaces (such as RS-485) for monitoring and control purposes |
| Redundancy Features | Redundant power supplies to ensure continuous operation in case of a single power supply failure. Automatic switchover between primary and secondary power supplies within milliseconds |
| Power Monitoring Accuracy | Voltage monitoring accuracy: ±1% of the measured value; Current monitoring accuracy: ±2% of the measured value |
| Compatibility | Specifically designed for seamless integration with Invensys TRICONEX safety and control systems. Can also interface with some third-party devices that require a 24V DC power supply |
| Operating Temperature Range | -20°C – 60°C |
| Humidity Range | 5% – 95% (non-condensing) |
| Protection Level | IP20 protection level for standard industrial installations, can be enhanced with additional enclosures for harsher environments |
3. Advantages and Features
- High Reliability due to Redundant Design: In a large chemical plant that operates continuously, the PDP403 was installed to power the safety control system. Thanks to its redundant power supply design, when one of the power supplies failed due to a sudden electrical surge, the system automatically switched to the secondary power supply within 2 milliseconds. This seamless switchover ensured that the safety PLCs and other critical devices continued to operate without any interruption, preventing potential safety hazards and production losses. Compared to non-redundant power distribution panels, it significantly reduced the risk of system failures caused by power issues.
- Excellent Power Monitoring Capabilities: In a power generation station, the Invensys TRICONEX PDP403 was able to accurately monitor the voltage and current of the power output. With a voltage monitoring accuracy of ±1% and current monitoring accuracy of ±2%, it could detect even minor fluctuations in the power supply. For example, it detected a slight drop in voltage that could have affected the performance of the generator control system. By sending an immediate alarm, the maintenance team was able to take corrective actions promptly, ensuring the stable operation of the power generation process.
- Seamless Integration with Invensys TRICONEX Systems: In an oil refinery, the PDP403 was easily integrated into the existing Invensys TRICONEX safety and control system. It communicated seamlessly with the other components of the system through the RS-485 interface, providing real-time power status information. This integration saved the refinery a significant amount of time and effort that would have been spent on developing custom interfaces or adapting the system to a new power distribution panel.
4. Application Areas and Case Studies
The Invensys TRICONEX PDP403 is applicable in various industries and scenarios, including petrochemical industry (refineries, chemical plants), power generation (thermal power plants, nuclear power plants, renewable energy facilities), manufacturing (automotive manufacturing, food and beverage production), and marine applications (shipboard control systems).
In a large thermal power plant, the Invensys TRICONEX PDP403 was used to power the control systems of the turbines and generators. One day, during a routine operation, the PDP403 detected an abnormal increase in the current draw from one of the output channels. It immediately sent an alarm to the control room. The maintenance team quickly investigated and found that a faulty sensor was causing the excessive current. Thanks to the timely detection by the PDP403, the sensor was replaced promptly, preventing a potential failure of the control system and ensuring the stable power generation of the plant.
5. Comparison with Competitors
Compared with other similar power distribution panels in the market, the Invensys TRICONEX PDP403 has several distinct advantages. It offers higher reliability due to its redundant design, which is crucial for critical industrial applications where uninterrupted power supply is essential. Its excellent power monitoring capabilities with high accuracy enable early detection of power issues. The seamless integration with Invensys TRICONEX systems makes it a more convenient choice for users who already have Invensys TRICONEX control systems in place. Some competing products may have lower reliability, less accurate monitoring, or limited integration capabilities, making the Invensys TRICONEX PDP403 a more attractive option for industrial users.
6. Selection Recommendations
- Compatibility: When selecting the Invensys TRICONEX PDP403, ensure that it is compatible with your existing control system. If you are using Invensys TRICONEX safety and control systems, it will integrate smoothly. However, if you plan to interface it with third-party devices, verify that the power output specifications and communication interfaces match. Incompatibility can lead to power supply issues and communication failures.
- Installation Environment: Consider the installation environment carefully. The PDP403 has a specified operating temperature and humidity range. If the installation site has extreme conditions, such as high levels of dust, vibration, or corrosive substances, additional protective measures may be needed. Ensure proper ventilation and grounding to prevent electrical hazards and ensure the normal operation of the panel.
- Budget: While the Invensys TRICONEX PDP403 offers excellent performance and reliability, compare its cost with other alternative power distribution panels. Also, consider the long-term costs, including maintenance, potential spare parts, and energy consumption. Look for a balance between cost and performance to ensure that you get the best value for your investment, especially in large-scale industrial projects where multiple panels may be required.
7. Precautions
- Installation: When installing the Invensys TRICONEX PDP403, make sure to turn off the power supply of the related system. Follow the installation instructions provided by Invensys TRICONEX carefully. Ensure that all electrical connections are correct and secure, especially the power input and output connections. Use proper cable sizing and shielding to prevent electrical interference and ensure the safety of the installation.
- Safety: Do not touch the internal components of the PDP403 while it is powered on. Use insulated tools when handling the panel. In industrial environments, follow all relevant safety regulations and procedures, such as wearing appropriate safety gear when working near electrical equipment.
- Maintenance: Regularly check the operation status of the Invensys TRICONEX PDP403, including checking the indicator lights to ensure normal operation. Clean the panel regularly to remove dust and debris that may affect its performance. Periodically test the redundant power supply system to ensure its proper functioning. Update the firmware if available to benefit from the latest features and improvements, but make sure to test the system thoroughly after the update to avoid any unexpected issues.
