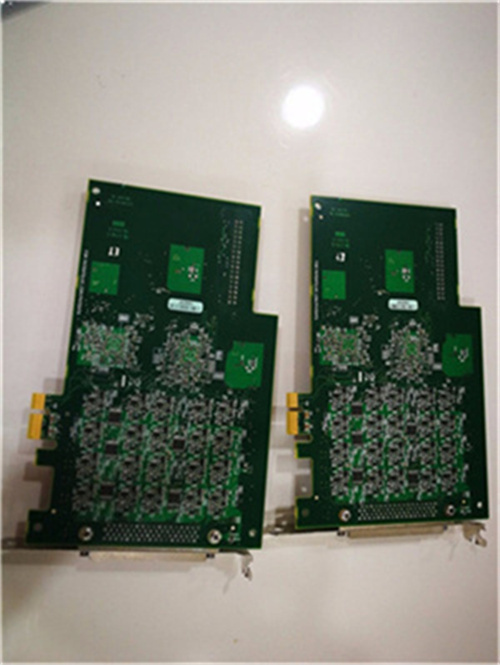

PCIE-6612

Description

argument
Number of counters/timers: 8
Number of digital I/O lines: 40 (TTL/CMOS compatible)
Maximum source frequency: 100 MHz
External source frequency: 80 MHz
DMA transfer tasks: Three high-speed DMA transfer tasks can be performed simultaneously
specification
Hardware configuration: 8 32-bit counters/timers and 40 TTL/ CMOS-compatible digital I/O lines
Software support: NI-DAQmx driver software, the use of X series NI-STC3 timing chip
Performance Parameters: High-performance timing and digital I/O capabilities for a variety of complex industrial automation and test needs
series
The PCI-6612 belongs to the PCIe series of data acquisition and test devices of National Instruments (NI).
trait
Versatility: Encoder positioning measurement, event counting, period measurement, pulse width measurement, pulse generation, pulse train generation, frequency measurement and other tasks can be performed.
High performance: With high performance timing and digital I/O capabilities, suitable for electronics, transportation, aerospace, automotive, electrical and other fields.
Synchronization: Three high-speed DMA transmission tasks can be performed synchronously to improve data transmission efficiency.
Software support: NI-DAQmx driver software helps achieve maximum productivity and performance.
effect
Pci-6612 counter/timer devices play an important role in the field of industrial automation, test and measurement, and can be used to perform a variety of complex counting and measurement tasks, such as encoder position measurement, event counting, period/frequency measurement, etc.
It is suitable for many application scenarios, such as generating retrigger pulse, signal edge separation measurement, continuous buffer event counting and continuous buffer pulse train measurement.
