PCI-8517

Description

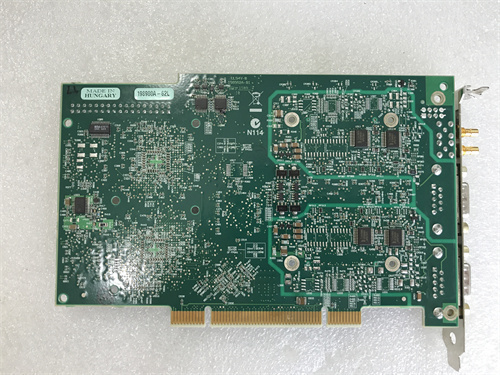

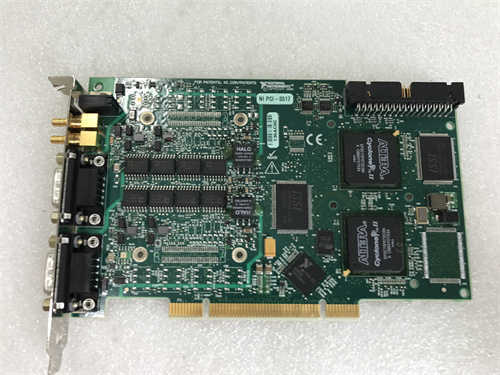

PCI-8517 NI

Pci-8517 (pci-8517) is a high-performance multifunctional I/o card that is used when high speed and high input/o accuracy are required. The map has a rich I/o function and a flexible configuration that can meet different application needs.

Product parameters (s)

– support pci bus, pci slot type 2.2
– with 32 digital input and 32 digital output channels
Input/output level: TTL/ cmos
– maximum selection speed: 10 ms/s
– maximum output speed: 10 ms/s
– supports several launch modes
– support multiplastic synchronization
– software support: labview, c/c ++, visual basic, matlab, etc.

Product specifications

– working temperatures: 0 degrees – 55 degrees
– stored temperatures: – 20 degrees – 70 degrees
– relative humidity: 5-90%.
– power supply requirements: +5 v, dc p5% @3 a typical, +12 v, dc pical + 100 ma typical

Annex to the product

Pci-8517 is widely used in various high-speed I/o applications, including:

– high-speed data collection
– speed control system
– verification of instruments and devices
– industrial automated control
– machine vision, etc.
