Description
Parameters and specifications:

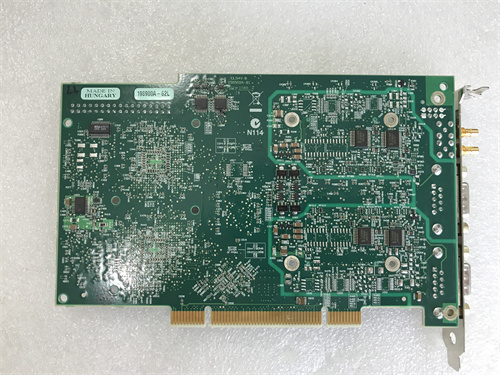

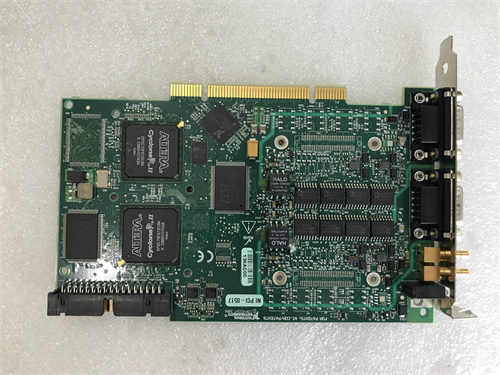

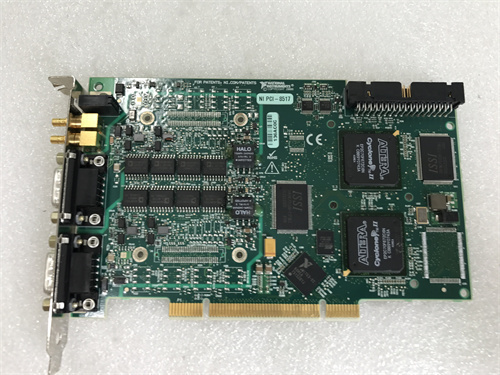

Technology Type: PCIe high-speed data acquisition card.
ADC resolution: 16Bit.
Input channel: four single-ended.
Input range: ±5V, ±1V.
Sampling rate: 80MS/s.
Sampling mode: synchronous sampling.
AD collection mode: continuous sampling, limited point sampling.
Memory depth: 2GB of onboard memory.
Calibration method: software automatic calibration.
Coupling mode: DC coupling, AC coupling.
Trigger source: software trigger, analog trigger, digital signal trigger, synchronous signal trigger.
Analog bandwidth: 40MHz.
Clock source: internal clock, external clock.
Features:
High-speed data acquisition: Supports sampling rates up to 80MS/s for high frequency and high dynamic range signals.
High resolution: 16-bit ADC resolution for high-precision data acquisition.
Multi-channel input: Four single-ended input channels, supporting simultaneous collection of multiple channels.
Seamless connection: Seamless connection with Labview, providing graphical API functions, convenient for users to collect and process data.
Multiple trigger modes: Support software trigger, analog trigger, digital signal trigger and synchronous signal trigger to meet different data acquisition needs.
Functions:
high-speed data acquisition card is mainly used for data acquisition and signal processing, and is suitable for industrial automation, scientific research experiments, testing and measurement. It can receive analog signals from a variety of sensors, convert them into digital signals and store, process and analyze them to provide accurate and reliable data support for a variety of applications.
