Description
4.Series:
- Part of NI’s DAQ product line, specifically designed for high-speed data acquisition12
5.Features:
–High Sampling Rate: Up to 1.25 MS/s per channel for fast data acquisition12
–Direct Memory Access (DMA): 2 DMA channels for efficient data transfer without CPU intervention26
–Low-Pass Filter: Programmable low-pass filter to reduce high-frequency noise during A/D conversion26
–Flexible Triggering: Analog and digital triggering options for automated data acquisition1
–Wide Input Range: Adaptable to various sensors and devices with input ranges from ±0.2 V to ±42 V1
6.Functions:
–Data Acquisition: Collects analog and digital signals from various sources for analysis and processing12
–Signal Generation: Generates analog output signals for testing and control applications12
–Timing and Counting: Provides timing and counting capabilities for event-based applications1
–Automation and Testing: Ideal for laboratory automation, research, development, and testing applications
1.Parameters:

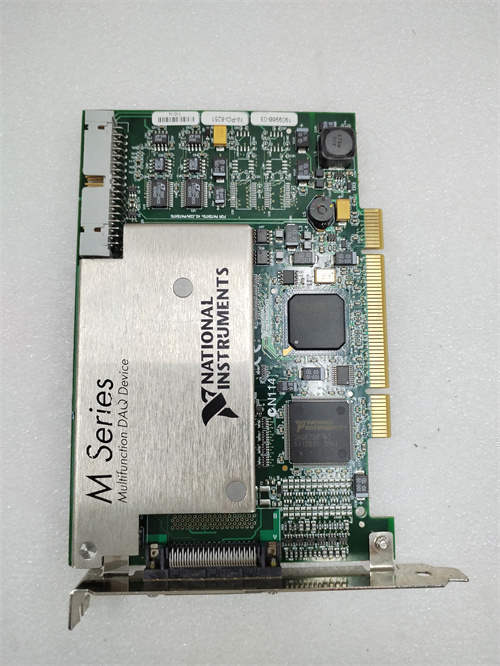

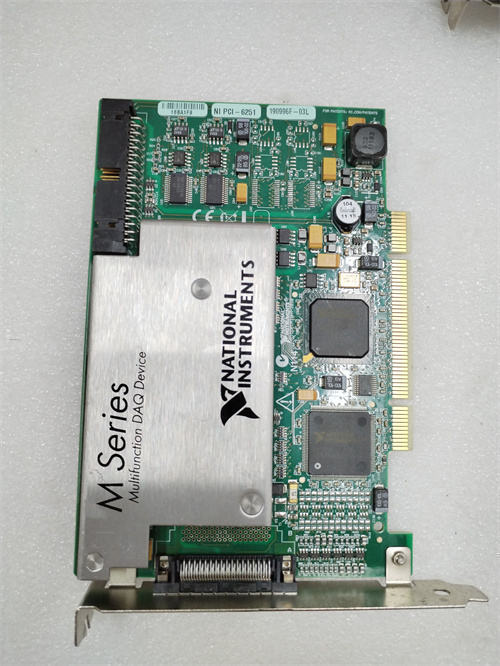

–Manufacturer: National Instruments (NI)12
–Model: PCI-625112
–Resolution: 16 bits12
2.Specifications:
–Analog Inputs: 16 channels, up to 1.25 MS/s per channel, 1 MS/s synchronized12
–Analog Outputs: 2 channels, up to 2.8 MS/s12
–Digital I/O: 24 channels1
–Counters/Timers: 2 32-bit counters/timers1
–Input Range: ±0.2 V to ±42 V (selectable)1
–Maximum Range: ±10V with 16-bit resolution26
3.Dimensions & Weight:
–Size: 15.5 cm x 9.7 cm4
–Weight: 5.2 ounces (approximately 147 grams)4
