Description
Parameters and specifications

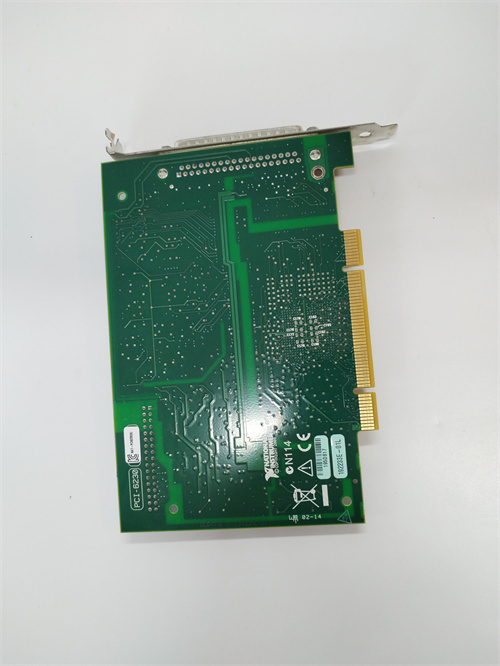

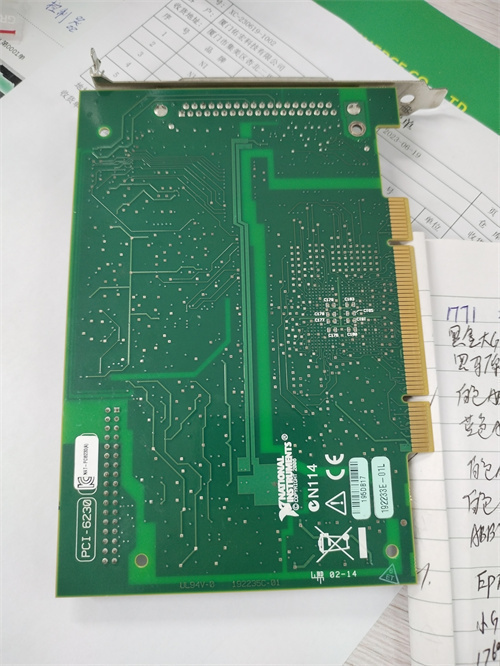

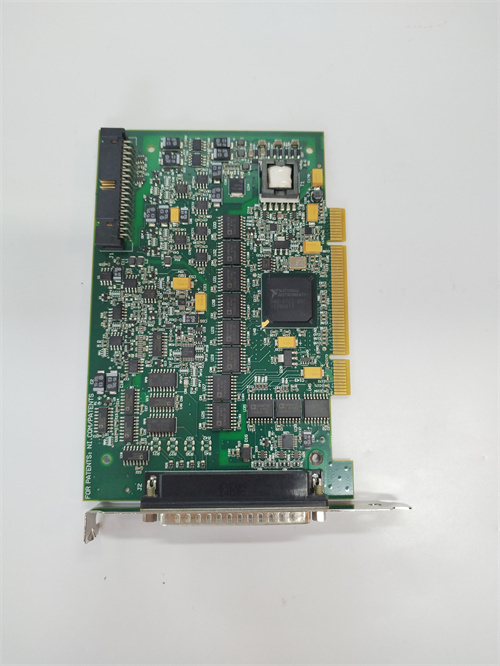

Model: PCI-6230
Brand: NI (National Instruments)
Isolation performance: 60 VDC uninterrupted group isolation, withstands 1,400 Vrms/1,950 VDC channel to bus isolation for 5s
Analog output: 4-channel analog output, 16-bit resolution, up to 500 kS/s (full scale adjustment time of 6µs)
Digital I/O: 6 digital input and 4 digital output channels, 5V TTL/CMOS
Counter/timer: 2, 32-bit resolution, 80MHz
Calibration technology: NI-MCal calibration technology improves the measurement accuracy
Driver software: NI-DAQMX driver software and NI LabVIEW SignalExpress interactive data recording software
Analog input: 32 SE/16 DIFF AI channels; Single channel 1.25 ms/s, multi-channel 1.00 ms/s
Digital I/O lines: 48 5V logical DIO lines; 32 hardware – timing up to 10 MHz
Input channels: 8 single-ended or 4 differential analog inputs
Input range: ±10 V, ±5 V and ±1 V, ±0.2 V
Maximum sampling rate: 250ks /s
Analog output resolution: 16 bits
Maximum output rate: 833ks /s
Size and weight
Dimensions: 3.8 x 6.1 inches
Weight: 0.24 pounds
series
PCI-6230 belongs to the M series of NI (National Instruments).
trait
Isolation performance: including transient safety, noise removal, reduced ground cycle and common mode voltage suppression, suitable for high voltage and electronic noise environments
Versatility: The combination of safe and efficient isolation and superior timing, amplification and calibration technology provides precise measurement and precise control
Programmability: Flexible configuration and measurement with NI-DAQMX driver software and NI LabVIEW SignalExpress interactive data logging software
Output FIFO: 8,191 can be handled and shared between channels
effect
The PCI-6230 data acquisition card is suitable for test, measurement, control and design applications in high voltage and electronic noise environments. It can be used with proximity sensors, control valves, pumps, flow meters, relays and other devices to provide accurate data acquisition and control functions.
