Description
argument
Input voltage: When used as an exciter control module, the parameters of the PCD232A may involve the control range of excitation current and voltage, but the specific values are not directly given. When used as a two-phase driver, its input voltage is 18~60VDC.
Output current: As a two-phase driver, the maximum output current is 6A (peak).
Power supply voltage: A power supply voltage of 1.20V is mentioned, but this may be a parameter for specific application scenarios and is not applicable in all cases.
Current: Some information indicates that the current range is 100-400A, but this may be related to specific application scenarios or product models.
specification

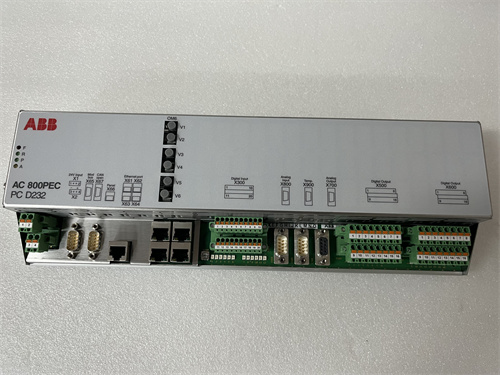

Brand: ABB
Product type: exciter control module
Bom number: PCD232A 3BHE022293R0101
Installation method: guide rail installation
Program capacity: 8K steps
Structure: modular
trait
Excitation current control: It can precisely control the size and waveform of the excitation current to meet the operation needs of the generator.
Voltage and reactive power control: By adjusting the excitation current, control the output voltage and reactive power of the generator to ensure the stable operation of the power system.
Fault monitoring and protection: with the fault monitoring function, it can detect various faults of the excitation system, and take corresponding protective measures to prevent the expansion of faults affecting the entire power system.
Communication interface: Usually has a communication interface, such as Ethernet or serial communication interface, in order to communicate with the superior monitoring system or other equipment to achieve remote monitoring and control.
Flexible configuration: Support a variety of control algorithms and parameter Settings, can be flexibly configured according to different generator and power system requirements.
