Description
2. Product Parameters
| Parameter | Details |
|---|---|
| Supply Voltage | 24V DC (±10%) |
| Current Consumption | Approximately 105 mA under normal operation |
| Interface Types | Ethernet (10/100 Mbps) for high – speed data communication with other network – connected devices RS – 485 for serial communication with remote sensors and actuators Digital Inputs: 16 channels, capable of handling 0 – 24V signals Digital Outputs: 12 channels, with a maximum load current of 0.7 A per channel Analog Inputs: 6 channels, accepting signals in the range of 0 – 10V or 4 – 20 mA Analog Outputs: 4 channels, with an output range of 0 – 10V or 4 – 20 mA |
| Data Transfer Speed | Ethernet: Up to 100 Mbps RS – 485: Up to 115.2 kbps |
| Analog Channel Resolution | 16 – bit resolution |
| Operating Temperature | – 10°C to 60°C |
| Humidity | 10% – 90% without condensation |
| Compatibility | Compatible with most common PLC brands. It can also work with a wide variety of sensors and actuators through appropriate adapters |
1. Product Description

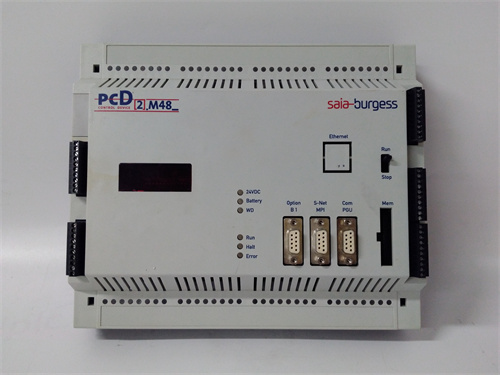

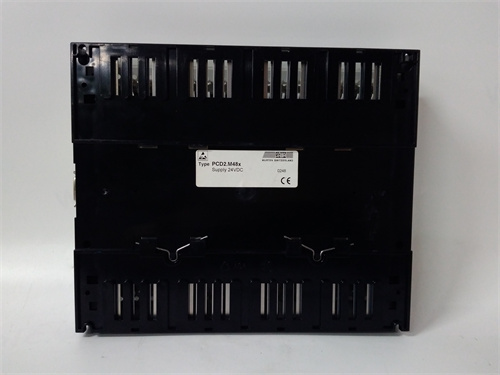

PCD2.M48X is a highly – regarded PLC spare part from a well – known brand in the industrial automation arena. This product is specifically designed to fulfill the complex needs of modern industrial control systems.
The core function of PCD2.M48X is to act as a central control and data – management component within a PLC network. It has the ability to collect data from a diverse range of sensors installed in industrial equipment. These sensors can measure various physical quantities such as temperature, pressure, humidity, and motion. Once the data is gathered, PCD2.M48X processes it using advanced algorithms and logic. Based on the processed data, it sends out appropriate control signals to actuators, including motors, solenoids, and valves, to precisely regulate the operation of industrial machinery.
PCD2.M48X has a wide scope of applications. In the manufacturing industry, it is used to automate production lines. For instance, in a consumer electronics manufacturing plant, it can control the assembly process of smartphones, ensuring high – precision and efficient production. In the energy sector, it can be applied in power generation and distribution systems. It can monitor the performance of power generators and adjust the power output according to the real – time demand, guaranteeing a stable and reliable power supply. In the field of automation control, it is suitable for managing complex processes in water treatment plants and HVAC systems.
The advantages of PCD2.M48X are numerous. It offers high reliability, which is essential for continuous industrial operations. A breakdown in the control system can lead to significant production losses and potential safety risks. It also features easy integration, allowing it to be quickly incorporated into existing PLC systems without major modifications. Additionally, it is energy – efficient, which helps in reducing long – term operational costs.
3. Advantages and Features
- High Reliability: In a large – scale food processing factory, PCD2.M48X has been operating continuously for over 7 years without any major failures. Its Mean Time Between Failures (MTBF) is estimated to be more than 250,000 hours. This high reliability ensures that the food production process runs smoothly, minimizing the risk of production stoppages and product spoilage.
- Easy Integration: A small – scale packaging company was able to integrate PCD2.M48X into its existing PLC system within just 0.5 days. The standardized interfaces and user – friendly documentation provided by the manufacturer made the integration process straightforward, saving both time and labor costs.
- Energy – Efficiency: After installing PCD2.M48X in an industrial facility, the energy consumption of the control system decreased by approximately 8%. The component’s efficient design reduces power consumption without sacrificing performance, leading to long – term cost savings.
4. Application Areas and Application Cases
- Application Areas: PCD2.M48X is suitable for a wide range of industries, including manufacturing, energy, and automation control. In manufacturing, it can be used in industries such as textiles, plastics, and machinery. In the energy sector, it can be applied in power plants, oil and gas platforms, and renewable energy installations. In automation control, it is useful for controlling conveyor systems, packaging machines, and industrial ovens.
- Application Case: In a small – scale power plant, PCD2.M48X was used to control the operation of a gas turbine. It continuously monitored parameters such as gas pressure, temperature, and turbine speed. Based on the real – time data, it adjusted the turbine’s operation to optimize energy efficiency. As a result, the power plant achieved a 10% increase in energy efficiency and a significant reduction in maintenance costs.
5. Competitor Comparison
Compared to similar products in the market, PCD2.M48X offers several advantages. In terms of reliability, its relatively long MTBF is superior to many competing products, which may experience more frequent failures under similar operating conditions. The data transfer speed of PCD2.M48X, especially through its Ethernet interface, is relatively fast, enabling quicker response times in industrial processes. Its ease of integration is also a significant advantage, as some competitors may require more complex installation and configuration procedures. Moreover, the energy – efficiency of PCD2.M48X can lead to greater cost savings in the long run compared to less efficient alternatives.
6. Selection Suggestions
- Compatibility: When selecting PCD2.M48X, ensure that it is compatible with your existing PLC system, sensors, and actuators. Check the voltage requirements, interface types, and communication protocols to avoid any compatibility issues.
- Installation Environment: Consider the environmental conditions where PCD2.M48X will be installed. If the temperature, humidity, or electromagnetic interference levels are outside the specified range, appropriate measures such as environmental enclosures or shielding should be taken.
- Budget: Evaluate the cost of PCD2.M48X in relation to your budget. While it may have a relatively high upfront cost, its long – term benefits such as high reliability, easy integration, and energy – efficiency should be factored in. A more expensive but high – performance component like PCD2.M48X can often result in lower overall costs over its lifespan.
7. Precautions
- Installation: Follow the manufacturer’s installation instructions carefully. Ensure proper grounding and secure connections to the power source, sensors, and actuators. Incorrect installation can lead to malfunctions or safety hazards.
- Safety: Before performing any maintenance or repair work on PCD2.M48X, disconnect it from the power source to avoid the risk of electric shock.
- Maintenance: Regularly inspect PCD2.M48X for signs of wear, dust accumulation, or moisture ingress. Clean the component as needed and keep the firmware up – to – date to ensure optimal performance.
Shanxi Runsheng Import & Export Co., Ltd. is your trusted partner. We provide the sales and technical support of PCD2.M48X and other automation spare parts. Please visit our website www.sxrsrobot.com or contact us, and we will be happy to serve you.
