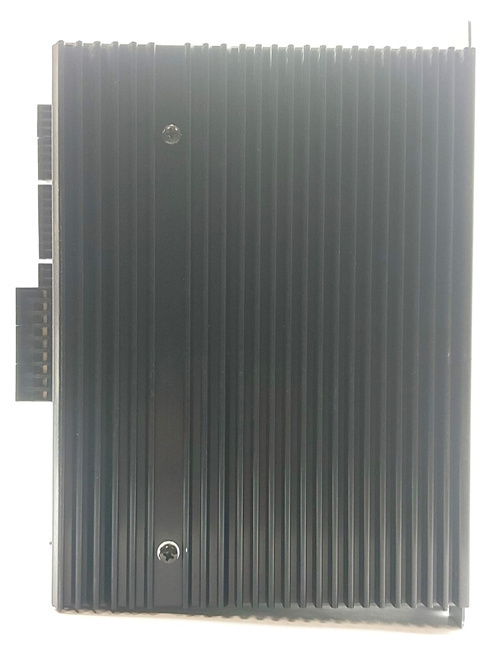

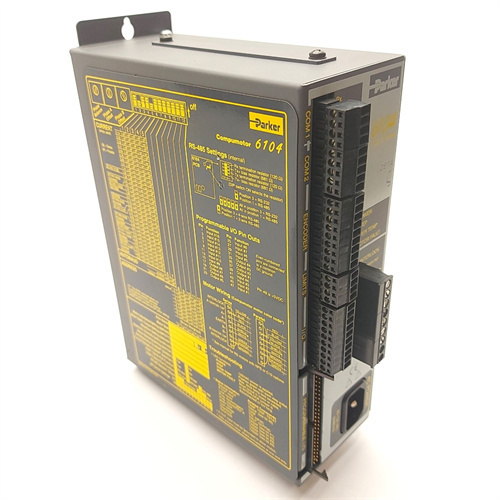

PARKER ZETA6104

Description

Parameters and Specifications:

• CPU: 400 MHz, ARM9, 32-bit¹.
• Flash Memory: microSD card (128 MB, replaceable, larger capacity options available)¹.
• RAM: 64 MB DDR2¹.
• Interfaces: 2 x 10/100 Mbit/s Ethernet interfaces (with integrated switch), 1 x Ethernet interface for programming or general network connection, 1 x USB device (located behind the front cover), battery-backed real-time clock (located behind the front cover), integrated 1-second UPS, I/O interfaces for bus terminal blocks or EtherCAT terminal blocks¹.

Dimensions and Weight:

• Dimensions and Weight: Specific dimensions and weight information for the PARKER ZETA6104 are not readily available in the search results.

Series:

• The ZETA6104 belongs to the ZETA6000 series of servo drives/controllers offered by PARKER².

Features:

• Integrated UPS: Provides sufficient power to store residual data in case of power failure¹.
• Low-Power Consumption: The embedded PC uses a low-power 32-bit ARM processor¹.
• Programmable Inputs and Outputs: Includes 16 programmable inputs and 8 programmable outputs (Opto-22 compatible)².
• Multi-Axis Connectivity: Up to 99 ZETA6000 series can be connected in a daisy-chain format (32 can use RS-485 multi-drop connectivity) for multi-axis applications².
• Advanced Functions: Supports phase shifting, electronic gearboxes, and fly-cutting functions².

Role:

• The PARKER ZETA6104 is a servo drive/controller designed for industrial applications². It provides precise positioning, speed, and torque control for servo motors³. The programmable inputs and outputs allow for integration with various sensors and actuators, enabling advanced automation and control solutions².
