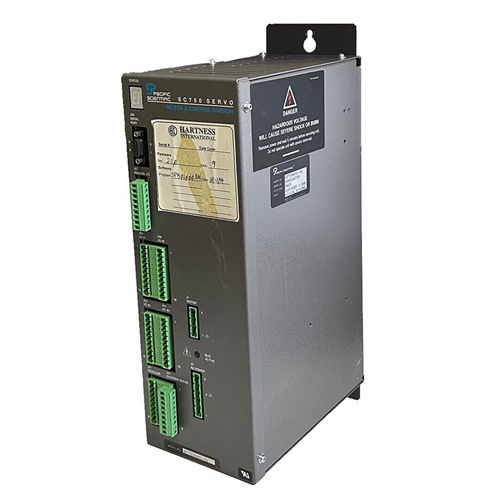

Pacific Scientific SC753A-001-01

Description

Parameters and Specifications:

• Model: Pacific Scientific SC753A-001-01
• Rated Power: 750W
• Rated Speed: 3000rpm
• Rated Torque: 2.5Nm
• Voltage: 24V
• Current: 31.25A (or 100-400A depending on sources)
• Efficiency: 90%
• Speed Range: 100-3000rpm
• Encoder: 2500ppr (or 1024 ppr for the servo controller version)
• Holding Torque: 277 oz-in
• Step Angle: 1.8 degrees
• Shaft Diameter: 0.25 inches
• Weight: 1.25 pounds (or 2KG depending on sources)

Dimensions and Weight:

• The exact dimensions are not provided, but the motor is described as having a compact size and lightweight design.

Series:

• Part of Pacific Scientific’s high-performance stepper motor series.

Features:

• Compact size and lightweight design for space-saving applications.
• Stable performance and high efficiency.
• Low noise and vibration.
• Easy installation and maintenance.
• Designed for precise and reliable motion control.
• Ideal for various industrial applications requiring accurate positioning and speed control.

Applications:

• Widely used in industrial control applications such as dispensers, pick-and-place machines, packaging machines, printing machines, robots, and CNC machines.
• Also suitable for applications in robotics, industrial automation, medical devices, printing equipment, and semiconductor manufacturing.

Description of Functionality:

Pacific Scientific SC753A-001-01 is a high-performance stepper motor designed for precise and reliable motion control. It offers a range of features that make it suitable for various industrial applications requiring accurate positioning and speed control. Its compact size and lightweight design allow for easy integration into existing systems, while its stable performance and high efficiency ensure reliable operation. The motor is widely used in applications such as dispensers, pick-and-place machines, packaging machines, printing machines, robots, and CNC machines, among others.
