Description
Parameters and specifications:
Input voltage range: 85 to 265 volts AC or 108 to 145 volts DC, nominal 125 volts DC.
Input frequency range: 47 to 63 Hz.
Input current:
5.6A (RMS maximum) for 85 V AC input.
2.5A (RMS maximum) for 230 V AC input.
Output voltage: 24.0 V DC, 0.2 V DC nominal factory Settings.
Voltage line adjustment rate: 2.0% of Vout.
Leakage current: When operating at 250 V AC (47 to 63 Hz) or lower, the AC line to chassis grounding is less than 1.6 mA.
Size and weight:
Dimensions: Approximately 17.8 cm x 10.7 cm x 21.5 cm (height x width x depth).
Shipping weight: 6 kg.
Series:

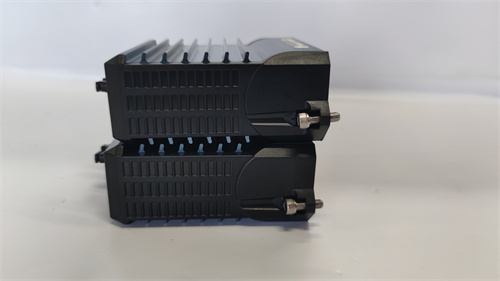

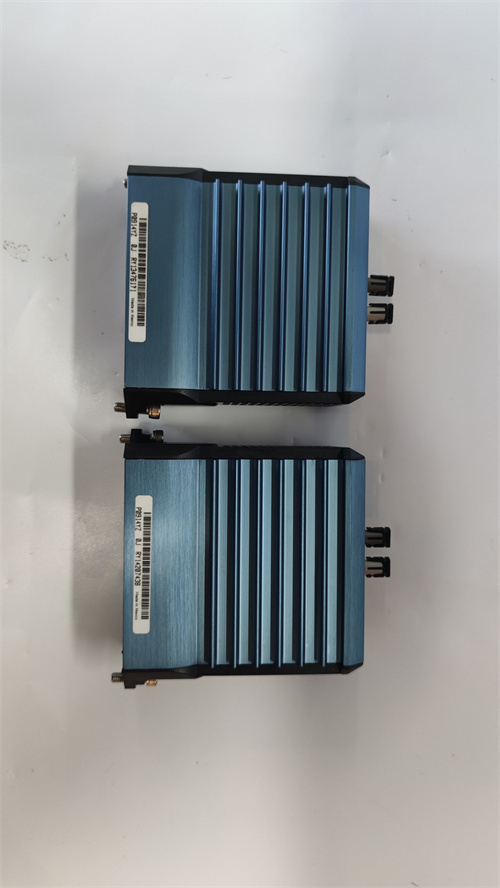

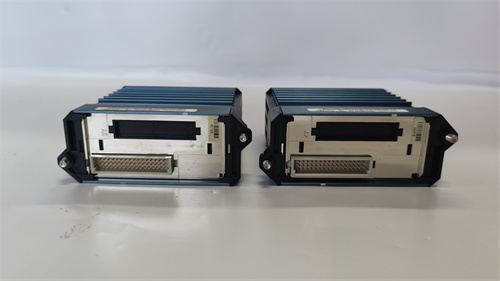

The P0922YU belongs to the Foxboro FPS400 series power module.
Features:
Stable output: Provides a stable DC power output, usually 24VDC, for powering various devices and modules in the control system.
High reliability: Stable and reliable performance, suitable for long-term operation in industrial environments.
Safety protection: With over current protection and short circuit protection function, can prevent over current and short circuit damage to the equipment.
High efficiency: With high power conversion efficiency, reduce energy waste.
Modular design: easy to install, maintain and replace.
Functions:
P0922YU power modules are commonly used in industrial automation and process control fields to provide a stable and reliable power supply for control systems. It can be used in various industrial automation and process control applications, such as chemical plants, power plants, pharmaceutical plants, etc.
