Description
Parameters and specifications:
Input voltage range: 85 to 265 volts AC or 108 to 145 volts DC, nominal 125 volts DC.
Input frequency range: 47 to 63 Hz.
Input current: 5.6A (RMS maximum) for 85 V AC input, 2.5A (RMS maximum) for 230 V AC input.
Output voltage: 24.0 V DC, 0.2 V DC nominal factory Settings.
Voltage line adjustment rate: 2.0% of Vout.
Operating temperature: -30 to 71 degrees Celsius (-58 to +160 degrees Fahrenheit).
Operating relative humidity: 5 to 95% (non-condensing).
Working height: -300 to +3000 m
Size and weight:
Dimensions: Approximately 17.8 cm x 10.7 cm x 21.5 cm (height x width x depth).
Shipping weight: 6 kg.
Series:

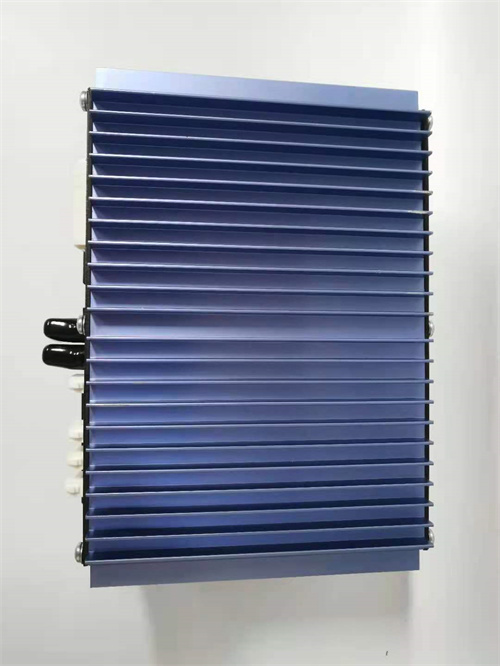

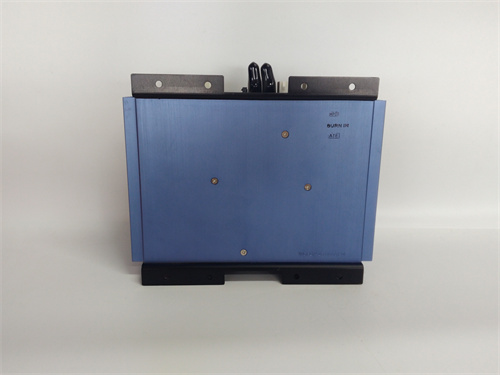

The P0922YU belongs to Foxboro’s family of power modules, which may specifically be the FPS400 series.
Features:
Stable and reliable power supply: Provides a stable DC power output, usually 24VDC, for various devices and modules in the control system.
Redundant design: Redundant power supply designs may be supported to improve system reliability and stability.
Overload protection and short circuit protection: with overload protection function, can prevent overcurrent from causing damage to the equipment; At the same time, it has the short-circuit protection function, which can prevent the power supply damage in the case of short circuit.
High efficiency: With high power conversion efficiency, reduce energy waste.
Modular design: May have a modular design for easy installation, maintenance and replacement.
Functions:
P0922YU power modules are commonly used in industrial automation and process control fields to provide a stable and reliable power supply for control systems. It is suitable for various industrial automation and process control applications, such as chemical plants, power plants, pharmaceutical plants, etc.
