Description

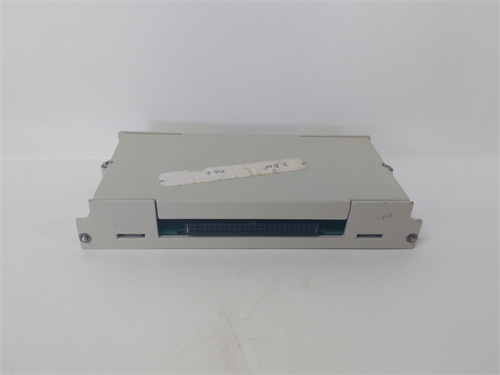

The NI SCXI-1302 is a modular hardware component designed for signal conditioning and measurement applications. Here’s a breakdown of its parameters, specifications, dimensions, weight, series, features, and functions in English:
Parameters:
The SCXI-1302 typically operates within a voltage range of 24VDC.
It is capable of handling input and output signals, with specified digital input and output counts.
Specifications:
The input voltage range of the SCXI-1302 is 10vdc to 30vdc, while the output voltage range is also 10vdc to 30vdc.
The input current is 5mA, and the output current per channel is 500mA.
Dimensions and Weight:
The dimensions of the SCXI-1302 are approximately 12.7cm x 8.9cm x 2.5cm.
The weight of the module is 2KG.
Series:
The NI SCXI-1302 belongs to the SCXI series of modular signal conditioning devices from National Instruments.
Features:
Modular Design: The SCXI-1302’s modular design allows for easy integration into larger measurement and automation systems.
Signal Conditioning: It performs signal conditioning tasks, such as amplification, filtering, and isolation, to enhance signal quality for accurate measurements.
Compatibility: The module is compatible with National Instruments’ data acquisition hardware and software, providing seamless integration and control.
Versatile Connectivity: The SCXI-1302 offers multiple connection options, allowing it to interface with various sensors and measurement devices.
Functions/Applications:
Data Acquisition: The NI SCXI-1302 is used in data acquisition systems to condition analog and digital signals from various sources for processing and analysis.
Signal Routing and Switching: It can be used to route and switch signals within complex measurement systems, providing flexibility in signal management.
Automation and Control: The module finds applications in automation and control systems, where accurate signal conditioning is crucial for effective system operation.
