Description

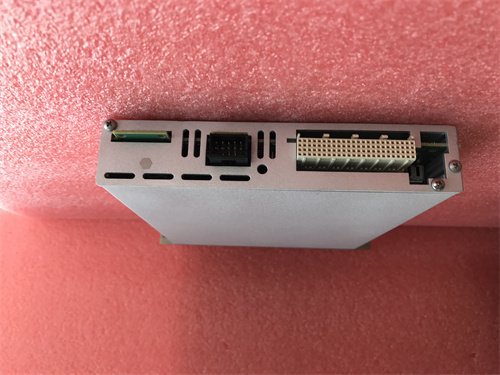

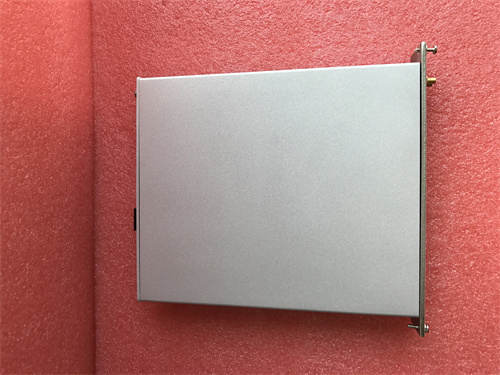

The NI SCXI-1193 is a high-density, 32-channel RF multiplexer switch module manufactured by National Instruments (NI). It offers a wide range of configuration options and capabilities, making it suitable for various applications in the field of industrial control and testing measurements.
Parameters and Specifications:
Channels: 32 channels, allowing for high-density signal routing and multiplexing.
Configuration Modes: It can be configured as multiple topology structures, including quad 8 x 1 multiplexers, quad 4 x 1 terminated multiplexers, dual 16 x 1 multiplexers, dual 8 x 1 terminated multiplexers, 32 x 1 multiplexer, 16 x 1 terminated multiplexer, and independent modules.
Signal Frequency Range: Each configuration can handle signals from DC to over 500 MHz.
Sampling Rate: High scanning rate, with a maximum of 100 operations per second.
Dimensions, Weight, and Series:
Dimensions: 1.2 x 6.8 x 7.8 inches.
Weight: 2 ounces (56.7 grams).
Series: SCXI series, which is a part of NI’s instrumentation and automation products.
Features:
High Performance: The module’s high-density design and precise switching capabilities ensure accurate signal routing and multiplexing.
Flexibility: Its configurable nature allows it to adapt to various signal routing needs and topologies.
Compatibility: Compatible with a wide range of cables, such as MCX-MCX, MCX-BNC, MCX-SMB, and MCX-SMA, with lengths of 0.3 meters or 1.0 meters.
Reliability: Silver-palladium and gold-made relays ensure reliable and long-lasting switching operations.
Applications and Functions:
Integration with High-frequency Devices: The SCXI-1193 can be integrated with devices such as PXI-5404 frequency generators and PXI-5112 high-speed digitizers for real-time simulation systems and other applications requiring precise data acquisition and signal transmission.
Measurement and Testing: It is suitable for various measurement and testing applications, including data acquisition, vibration analysis, temperature measurement, and more.
