Description

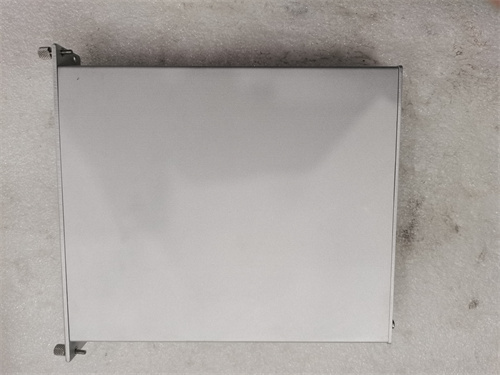

The NI SCXI-1125 is a data acquisition module produced by National Instruments (NI) that offers high-performance measurement capabilities for various industrial and research applications. Here’s a breakdown of its parameters, specifications, dimensions, weight, series, features, and functions in English:
Parameters:
Measurement Type: Differential or single-ended thermocouple input.
Channel Count: 8 differential or 16 single-ended input channels.
Accuracy: ±0.5°C for J, K, T, E types, ±1.0°C for R, S, N, B types.
Specifications:
Isolation Voltage: 1000 Vrms for measurement safety and data integrity.
Cold Junction Compensation: Built-in circuit for accurate temperature measurements.
Dimensions & Weight:
Dimensions: 3.78 cm x 12.19 cm x 20.32 cm.
Weight: 454 grams. However, some sources also mention a weight of approximately 1.2 kg. This difference might be due to different configurations or measurement conditions.
Series:
The SCXI-1125 belongs to the SCXI series of data acquisition modules offered by NI.
Features:
High Performance: Offers accurate and reliable measurements for temperature sensors.
Flexibility: Supports multiple types of thermocouples (J, K, R, S, T, N, E, B).
Safety: Features a high isolation voltage for safe measurements.
Easy Integration: Can be easily integrated into industrial automation and control systems.
Functions/Applications:
Temperature Measurement: Used to measure and record temperature values from multiple temperature sensors.
Industrial Automation: Commonly found in industrial automation systems for temperature monitoring and control.
Research & Development: Also utilized in research and development settings for precise temperature measurements.
