Description

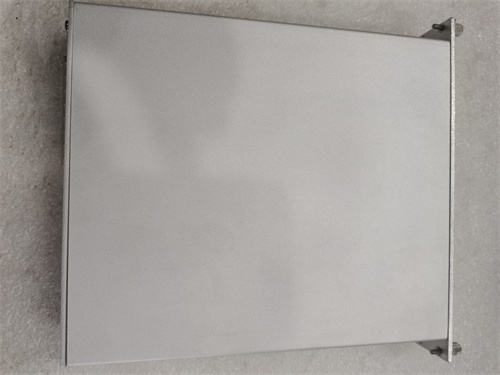

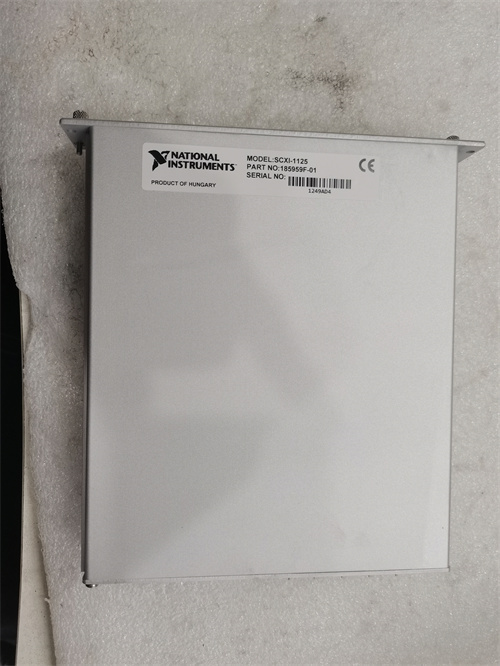

The NI SCXI-1125 is a module produced by National Instruments (NI) that finds widespread application in industrial automation and control systems. Here is a breakdown of its parameters, specifications, dimensions, weight, series, features, and functions in English:
Parameters and Specifications:
Type: NI SCXI-1125 is a data acquisition module designed for measuring and recording temperature values from multiple thermocouples.
Input Channels: It supports 8 differential or 16 single-ended thermocouple input channels.
Accuracy: ±0.5°C for J, K, T, E types and ±1.0°C for R, S, N, B types.
Isolation Voltage: 1000 Vrms for measurement safety and data integrity.
Dimensions and Weight:
Dimensions: 3.78 cm x 12.19 cm x 20.32 cm.
Weight: 454 grams.
Series:
The NI SCXI-1125 belongs to the SCXI series of modules from National Instruments.
Features:
High Precision: With its high accuracy and differential or single-ended input capabilities, the SCXI-1125 offers precise temperature measurements.
Isolation: The module’s high isolation voltage ensures safety and data integrity.
Cold Junction Compensation: The built-in cold junction compensation circuit maintains accurate temperature readings.
Flexibility: Supports multiple types of thermocouples, allowing for a wide range of temperature measurement applications.
Applications and Functions:
The NI SCXI-1125 is typically used in industrial automation and control systems where precise temperature measurements are crucial. It can be integrated into larger systems, providing real-time temperature data for monitoring, control, and analysis. The module’s compact size and modular design make it easy to install and integrate into various setups.
It is important to note that the specifications, dimensions, and weight may vary slightly depending on the specific model or revision of the NI SCXI-1125. It is always advisable to consult the official product documentation or contact the manufacturer for the most accurate and up-to-date information.
