Description

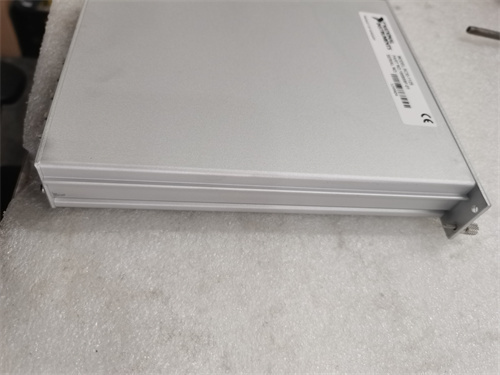

The following information is available about the parameters, specifications, dimensions, weight, series, features and functions of the NI SCXI-1125:
Parameters and specifications:
Type of measurement: Differential or single-ended thermocouple input
Number of channels: 8 differential or 16 single-ended
Input type: Thermocouple (J, K, R, S, T, N, E, B)
Accuracy: ±0.5°C(J, K, T, E), ±1.0°C(R, S, N, B)
Isolation voltage: 1000 Vrms
Cold end compensation circuit: built-in
Size and weight:
Dimensions: 3.78cm x 12.19cm x 20.32cm
Weight: 454 grams
Series:
SCXI front-end connector
Features:
Digital input: Has multiple digital input channels for receiving digital signals, such as switch status, sensor status, or digital control signals
Digital output: has a digital output channel for controlling external devices
High-speed response: Enables fast digital input and output responses
Built-in cold end compensation circuit: to ensure the accuracy of measurement
High isolation voltage: ensures measurement safety and data integrity
Functions:
Data Acquisition: The SCXI-1125 is a data acquisition module manufactured by National Instruments(NI) for measuring and recording temperature values from multiple temperature sensors
Industrial automation: Commonly used in industrial automation and control systems for digital input and output control
Control of external devices: Through the digital output channel, you can control such as relays, solenoid valves, motor start-stop and other external devices
