Description

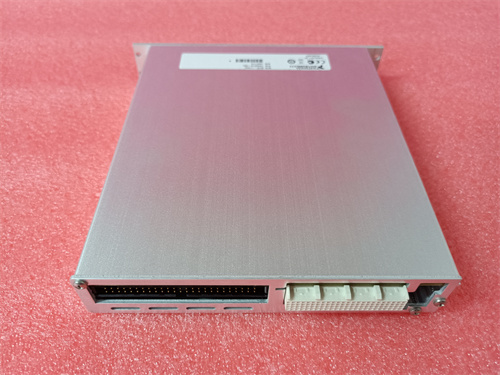

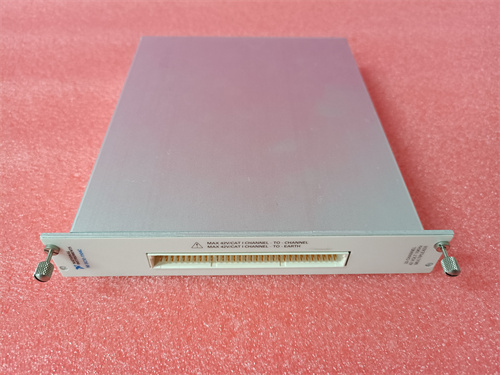

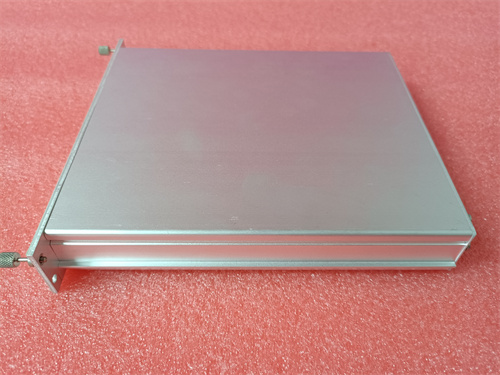

The NI SCXI-1104C is a high-performance data acquisition module from National Instruments (NI), specifically designed for precision measurement and industrial automation applications. Here’s a breakdown of its parameters, specifications, dimensions, weight, series, features, and functions in English:
Parameters and Specifications:
Channels: The module typically supports multiple channels, often 16 differential input channels, for connecting and acquiring data from multiple sensors or measurement points.
Maximum Sampling Rate: It offers a maximum sampling rate of up to 100 kS/s, depending on the specific configuration and application.
Resolution: The module features a high resolution of 24 bits, ensuring accurate and reliable data acquisition.
Input Voltage Range: It has an input voltage range of ±10 V, suitable for various sensor types.
Input Impedance: The input impedance is specified as 1 MΩ || 5 pF.
Dimensions and Weight:
Dimensions: The module measures 3.3 x 22.9 x 14.0 cm, making it suitable for various installation spaces and rack systems.
Weight: It has a weight of approximately 0.36 kg, providing portability and ease of handling.
Series:
The NI SCXI-1104C belongs to the SCXI (Signal Conditioning eXtensions for Instrumentation) series of modules, which are designed to enhance the performance and functionality of data acquisition systems.
Features:
High Performance: The module incorporates high-performance analog-to-digital converters (ADCs) for precise and accurate data acquisition.
Flexibility: It offers programmable capabilities, allowing users to configure and control the module through programming languages like LabVIEW, meeting specific application requirements.
Compatibility: The NI SCXI-1104C is compatible with other NI hardware and software products, enabling seamless integration into existing systems.
Multi-Purpose Applications: It is suitable for a wide range of applications, including test and measurement, automation control, scientific research, and more.
Functions and Applications:
The NI SCXI-1104C is designed to acquire analog signals from various sensors, such as temperature, pressure, flow, vibration, and other physical quantities.
It can be used in laboratory environments for experimental measurements and research purposes, as well as in industrial settings for monitoring and controlling automation systems.
With its high-resolution and precision capabilities, the NI SCXI-1104C is ideal for applications that require accurate data acquisition and signal processing.
Please note that the specifications, dimensions, and features mentioned may be subject to change as the manufacturer updates its products. It is always advisable to refer to the official product documentation or contact National Instruments directly for the most accurate and up-to-date information.
