Description

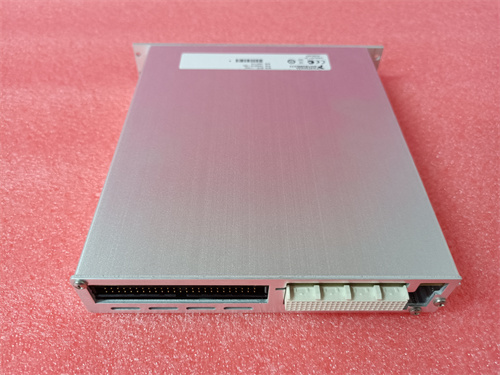

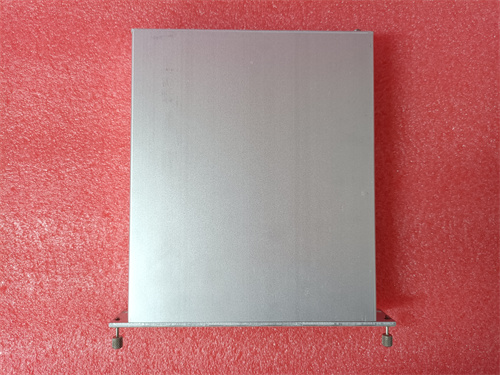

NI SCXI-1104C is a high-performance, multi-channel analog signal acquisition module, the specific parameters, specifications, dimensions, weight, series, features and functions are as follows:
Parameters and specifications
Number of channels: Usually 16 differential input channels, supporting a variety of signal types.
Resolution: A 24-bit analog-to-digital converter (ADC) is provided to ensure highly accurate data acquisition.
Sampling rate: The maximum sampling rate is 100 kS/s, but the specific rate may vary according to application requirements.
Input voltage range: ±10 V, suitable for a variety of common signal types and voltage standards.
Input impedance: 1 MΩ || 5 pF to ensure stable signal transmission.
Connection mode: SCXI terminal board is used to connect various sensors and signal sources.
Size and weight: 3.3 x 22.9 x 14.0 cm, 0.36 kg.
Size and weight
Dimensions: 3.3 x 22.9 x 14.0 cm.
Weight: 0.36kg.
series
The NI SCXI-1104C belongs to the SCXI family of National Instruments (NI), a high-performance, modular signal conditioning and acquisition system.
trait
High performance: Support multi-channel, high-precision analog signal acquisition.
Modular design: Easy to integrate into a variety of chassis or rack, with good compatibility and configurability.
Programmability: It can usually be configured and controlled using a programming language such as LabVIEW.
Multiple interface options: Support USB, PCI, PXI, Ethernet and other interfaces, easy to connect with the computer or control system.
Scalability: More complex data acquisition and processing tasks can be implemented by adding modules and devices from other NI companies.
effect
NI SCXI-1104C is mainly used in scientific experiments, test and measurement, automation control, data recording and monitoring and other application fields, can provide high-precision analog signal acquisition, help users better understand the operating status of the system, improve production efficiency and equipment reliability.
