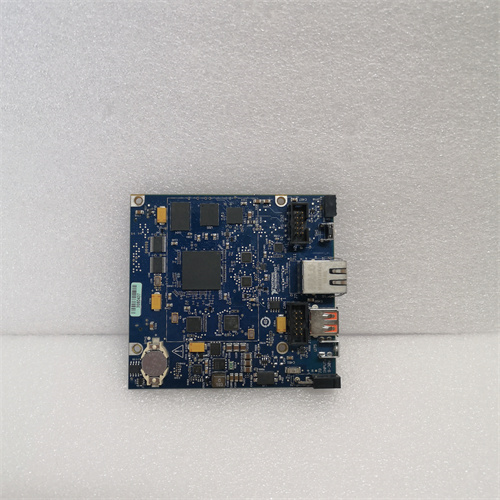

NI SBRIO-9607

Description

Parameters and Specifications:

• Processor: Xilinx Zynq-7020 SoC¹²³
• Memory: 512 MB DDR3 SDRAM (DRAM), 1512 MB Nonvolatile Memory¹³
• Storage: 2 GB SLC NAND Flash²
• Processor Speed: 667 MHz¹³
• Operating System: NI Linux Real-Time (32 bit)³
• Communication Interfaces: 2 Gigabit Ethernet ports, 1 USB port, 1 RS232 serial port²
• I/O Interfaces: 40 FPGA general-purpose I/O pins, 2 FPGA high-speed serial interfaces, 4 FPGA differential ADC interfaces, 4 FPGA differential DAC interfaces²

Dimensions and Weight:

• Size: 95 x 95 mm²
• Weight: Not specifically mentioned in the search results.

Series:

• Part of the CompactRIO series¹

Features:

• Embedded Processing: High-performance embedded processor for data processing, control algorithms, and user-defined applications¹⁷.
• Real-Time Operating System: Ensures reliable real-time response for control and data acquisition tasks¹⁴.
• Programmability: Supports programming in advanced languages like LabVIEW, C/C++, and FPGA programming languages¹⁴.
• FPGA Programming: Allows for hardware acceleration and high-speed data processing¹⁴.
• Data Acquisition and Processing: Capable of collecting sensor data, executing real-time signal processing, and generating control commands¹⁵.
• Multiple Communication Options: Supports Ethernet, CAN, serial, and USB ports for data exchange and communication⁵.

Functionality and Applications:

• Data Acquisition: Ideal for industrial automation, energy management, and environmental monitoring applications⁵.
• Signal Processing: Performs real-time signal processing for various applications¹.
• Embedded Control: Used in embedded control applications for robots, drones, and intelligent transportation systems¹².
• Industrial Standards Compliance: Ensures compatibility and reliability in industrial environments
