Description

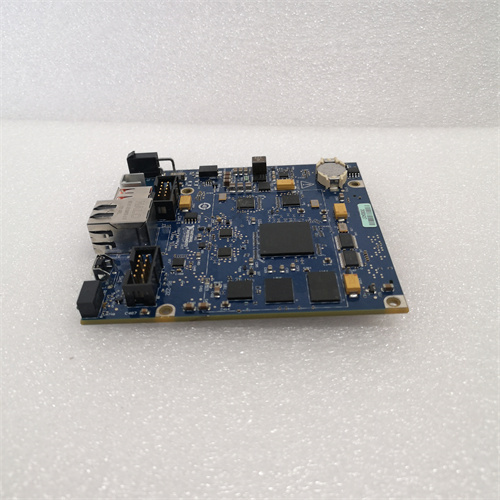

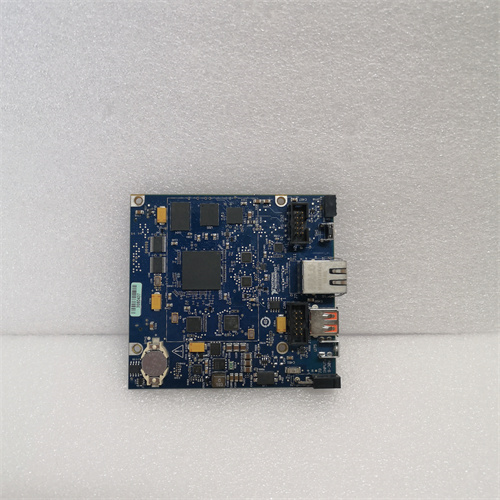

The NI SBRIO-9607 is an embedded system control board module from National Instruments (NI). Here is a breakdown of its parameters, specifications, dimensions, weight, series, features, and functions in English:
Parameters and Specifications:
Brand: National Instruments (NI)
Model: SBRIO-9607
Processor: Xilinx Zynq-7020 SoC
Memory: 512 MB DDR3 SDRAM
Storage: 2 GB SLC NAND Flash
Operating System: NI Linux Real-Time (32-bit)
Communication Interfaces: 2 Gigabit Ethernet ports, 1 USB interface, 1 RS232 serial port
I/O Interfaces: 40 FPGA general-purpose I/O pins, 2 FPGA high-speed serial interfaces, 4 FPGA differential ADC interfaces, 4 FPGA differential DAC interfaces
Operating Temperature: -40°C to +85°C
Dimensions and Weight:
Size: 95 x 95 mm
Weight: 2 KG
Series:
The SBRIO-9607 belongs to the SBRIO series of embedded controllers from NI. This series offers a range of controllers with different specifications and capabilities, designed for various automation and control applications.
Features:
Embedded Design: The SBRIO-9607 integrates a real-time processor, user-reconfigurable FPGA, and I/O onto a single printed circuit board (PCB), providing a compact and efficient solution for flexible, reliable, and high-performance OEM applications.
High-Performance Hardware: It features a 667 MHz dual-core CPU, 512 MB of DRAM, and 512 MB of storage, along with the Zynq-7020 FPGA CompactRIO single-board controller, enabling complex data acquisition and control tasks.
Rich I/O Interfaces: The SBRIO-9607 provides Gigabit Ethernet, CAN, serial, and USB ports, as well as 96 digital I/O lines, facilitating easy data exchange and communication with other devices and systems.
High-Speed Data Transmission: With its RIO夹层卡 (RMC) connector, the SBRIO-9607 supports high-speed, high-bandwidth data transmission, making it suitable for applications that require extensive data transmission and processing.
Wide Temperature Range: It is designed to operate within a temperature range of -40°C to +85°C, allowing it to function reliably in harsh industrial environments.
Real-Time Performance Management: The SBRIO-9607 enables real-time performance management by running applications based on Indusoft Web Studio. This includes acquiring data from various sources, such as PLCs and enterprise resource planning systems, and pushing it to thin clients via a web browser. This feature enables even small manufacturing and processing plants to capture and analyze large amounts of data in real-time.
Compatibility with Multiple Devices and Systems: The SBRIO-9607 is compatible with almost all OPC and Microsoft applications, such as office software, relational databases, historians, quality assurance systems, enterprise resource planning, and more. This allows for seamless integration with existing devices and systems.
Functions:
Data Acquisition and Processing: The SBRIO-9607 is designed for data acquisition and processing, capable of capturing sensor data, performing real-time signal processing, and generating control commands.
Control Applications: As an embedded controller, the SBRIO-9607 is suitable for a wide range of control applications, including industrial automation, robot control, drones, and intelligent transportation systems.
In summary, the NI SBRIO-9607 is an embedded system control board module with advanced features and capabilities. It offers a compact and efficient design, high-performance hardware, rich I/O interfaces, high-speed data transmission, wide temperature range operation, real-time performance management, and compatibility with multiple devices and systems. These features make it suitable for various industrial automation and control applications that require precise and reliable data acquisition and processing.
