Description

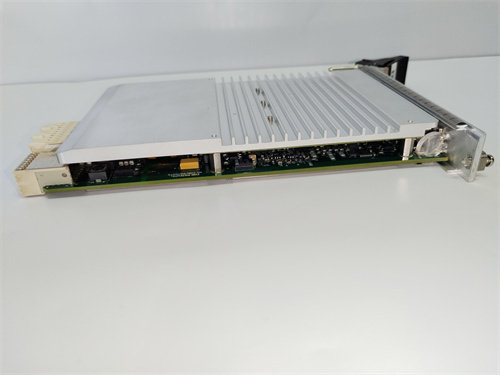

The NI PXIE-4145 is a high-performance module produced by National Instruments (NI) that is widely used in automation testing and measurement applications. Here is an overview of its key parameters, specifications, dimensions, weight, series, features, and functions in English:
Parameters and Specifications:
Brand: National Instruments (NI).
Model: PXIE-4145.
Type: Precision Source Measure Unit (SMU) Module.
Measurement Function: Voltage and current.
Measurement Range: ±10v, ±1v, ±100mv, ±10mv, ±1mv, ±100 μV.
Power Range: ±10v, ±1v, ±100mv, ±10mv, ±1mv, ±100 μV.
Measurement Resolution: Up to 7½ bits.
Dimensions and Weight:
Dimensions: 170mm x 105mm x 32mm.
Weight: The specific weight is not mentioned in the available information, but it is typically lightweight for ease of installation and portability.
Series:
The PXIE-4145 belongs to the PXI Express (PXIe) series of modules offered by NI.
Features:
Rich I/O and Communication Interfaces: Features multiple digital input/output (DIO), analog input/output (AIO), serial communication interfaces (e.g., RS-232, RS-485, CAN), and Ethernet interfaces for connecting various sensors, actuators, and other devices.
High-Performance Data Acquisition and Signal Processing: Supports data acquisition, signal processing, motion control, and data analysis through NI LabVIEW or C/C++ development languages.
Secure Functionality: Supports multiple security protocols (e.g., SSL/TLS, AES-256 encryption) and secure boot functions to ensure data security and integrity.
Accurate Measurement: Each channel of the 4-channel SMU integrates remote (4-wire) sensing for precise measurements.
High Sampling Rate: Helps shorten measurement time, capture transient characteristics of devices, and perform rapid IV characteristic analysis on devices under test (DUT).
Functions/Role:
Automation Testing and Measurement: Designed to provide accurate voltage or current sources as well as measurement capabilities in PXI systems for automation testing and measurement applications.
Integration with Other Systems: Its compatibility with various interfaces and protocols allows for seamless integration with other testing and measurement equipment, enabling comprehensive system-level testing and data acquisition.
