Description

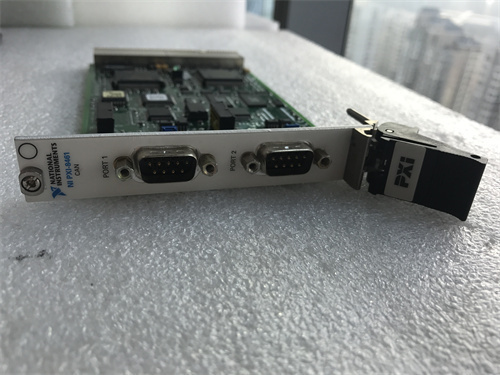

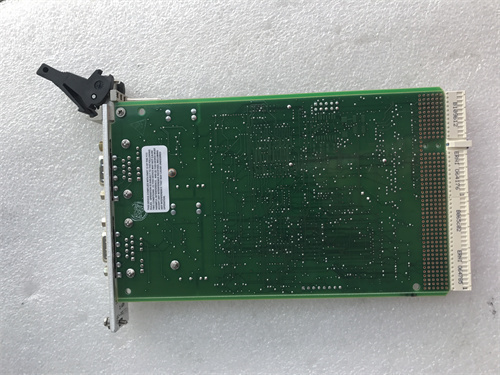

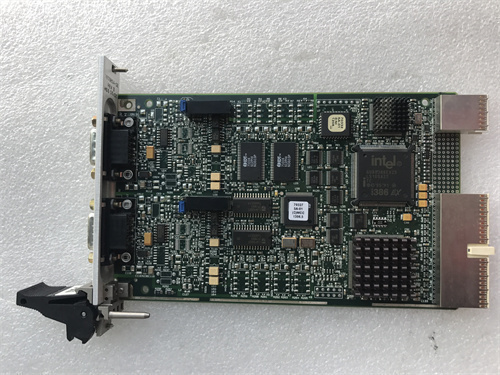

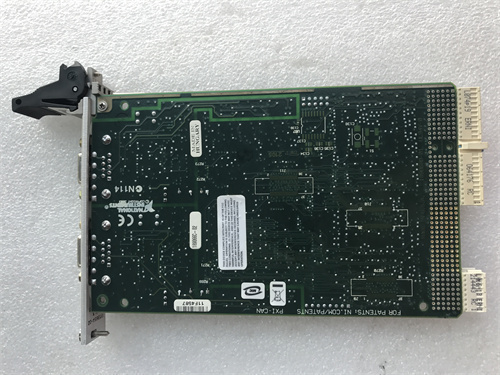

The NI PXI-8461 is a high-performance module designed for industrial automation and testing applications. Here is a detailed overview of its parameters, specifications, dimensions, weight, series, features, and applications in English:
Parameters and Specifications:
Interface Type: The PXI-8461 is a CAN (Controller Area Network) interface module that supports the NI-CAN driver.
Ports: It provides 2 ports for high-speed CAN communication.
Communication: It offers listen-only, self-reception (echo), and advanced filtering modes for precise communication control.
Dimensions and Weight:
Dimensions: The module’s physical dimensions may vary depending on the specific packaging and configuration. However, it is typically designed to fit into a standard PXI slot.
Weight: The weight of the module is approximately 1.6kg.
Series:
The NI PXI-8461 belongs to the PXI series of modular instruments designed for test, measurement, and control applications.
Features:
Compatibility: It is compatible with various NI software and development tools, enabling seamless integration into larger systems.
Driver Software: Each PXI-8461 ships with NI-CAN driver software, providing a frame-based API for rapid application development.
Flexible Modes: Its multiple communication modes allow for precise control and filtering of CAN bus data.
Applications and Role:
The NI PXI-8461 is commonly used in vehicle testing, industrial automation, and any application that requires precise CAN communication. It plays a crucial role in developing applications with the NI-CAN driver, enabling the control and monitoring of CAN bus systems.
It is often part of a larger PXI-based test system, where it can be combined with other modular instruments to create a comprehensive testing solution. The module’s high-speed performance and precision make it suitable for demanding applications that require real-time data acquisition and control.
